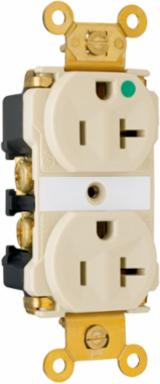

Pass & Seymour 8300IMRI Extra Heavy Duty Hospital Grade MRI Duplex Receptacle 20A 125V Ivory 1.625 Inch Width
- MPN: 8300IMRI
- UPC: 785007269161
- PPN: P-S-8300IMRI
CAD
$51.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Extra Heavy Duty Hospital Grade MRI Duplex Receptacle 20A 125V Ivory 1.625 Inch Width
Features
- Designed expressly for MRI applications.
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- Extra heavy-duty one-piece nickel-plated brass mounting strap with integral ground for superior structural integrity and long-term performance.
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- External screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.866 in
- Color
- Ivory
- Width
- 1.625 in
- Country of Origin
- Mexico
- Outlet Type
- MRI
- Standard
- FEDSPEC
- Features
- Illuminated
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 2.0
- Outlet Type
- Hospital Grade
- Application Sector
- Commercial
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Dielectric Strength
- Withstands 2000V minimum
- Environmental Conditions
- Flammability: UL94 V2
Height2.75 in
Product LinePass & Seymour
StandardUL498
Amperage20.0 A
Voltage125.0 V
Number of Wires3.0
Indoor/OutdoorIndoor
Wall Plate IncludedNo
StandardCSA C22.2 No. 42
Number of PolesDouble Pole
Application SectorHealthcare
NEMA Configuration Code5-20R
Warranty Type1-Year Limited Warranty
Wire Connection TypeInternal Pressure Plates
Special FeaturesDesigned expressly for MRI applications. Exclusive patented feature, circuit label on face allows permanent circuit identification. Extra heavy-duty one-piece nickel-plated brass mounting strap with integral ground for superior structural integrity and long-term performance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Auto-ground clip assures positive ground.
