Adaptaflex SPLHCB32/10M Extreme Temperature Flexible Conduit

MPN: SPLHCB32/10M
UPC: 786210245522
PPN: T-B-SPLHCB32/10M

$1966.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

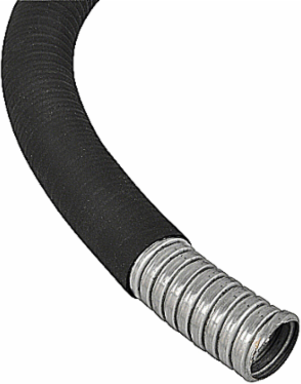

Liquid Tight, Extreme Temperature Covered Steel Flexible Conduit with Stainless Steel Overbraid, Medium Flexibility, Nominal Conduit Size 32mm, Outside Diameter 33.1mm, Inside Diameter 26.7mm, Static Bend Radius 145mm, Reel Length 10 Meters, Thermoplastic Rubber Cover with Galvanised Steel Core, Black

Features

Very high UV resistance
Very high flexibility
Very high fatigue life
High mechanical strength, high abrasion resistance
Self extinguishing and halogen free
Standard EMI screen rate
Rail/Infrastructure
Underground
Public Buildings

Specifications

European Specifications (ETIM)

ETIM	EC001179 Protective metallic hose
Outer diameter	33.1mm
Material	Steel
Sheathing material 1st coating	Other
Operating temperature	-65-+135°C
Weight	0.677kg/m
Bending strength	Flexible

Nominal diameter	32mm
Inner diameter	26.7mm
Surface protection	Other
Sheathing material 2nd coating (exterior)	Stainless steel wire
Degree of protection (IP)	IP68
Colour	Black

North American Specifications (UNSPSC)

UNSPSC	39131706 Electrical conduit
Brand Name	Adaptaflex
Application	Liquid Tight - Extreme Temperature Environments
Outside Diameter	33.1mm
Length	10 m
Flexibility	Medium
Color	Black

IGCC	5543 Liquid Tight Conduit
Type	Extreme Temperature Flexible Conduit
Trade Size	1 Inch/NC 32mm
Inside Diameter	26.7mm
Radius	145mm
Material	Galvanized Steel Core with Thermoplastic Rubber Cover
