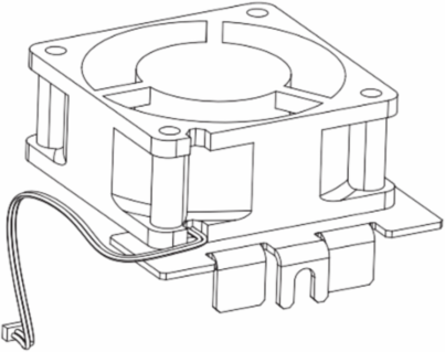

Schneider Electric VX5VP50A001 Cooling Fan for Altivar Process Drives, 17.2x23.6x7.1 Inch, IP55, 22kW
- MPN: VX5VP50A001
- PPN: SCH-VX5VP50A001
CAD
$169.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 0.75kw to 22kw and a rated voltage from 380V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges This fan has a fixed type body which is made of plastic. Its dimensions are 17.2cm (width) x 23.6cm (Length) x 7.1cm (Height) and weighs 265g. This power fan is compatible with ATV650U07N4 to D22N4, ATV650U07N4E to D22N4E, ATV950U07N4 to D22N4, ATV950U07N4E to D22N4E. This kit includes 1 control fan for IP55 Drive, 1 mounting bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Important Information Attributes
- Kit Composition
- fan, mounting bracket, instruction sheet
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- N
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Weee Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- Product Contributes To Saved And Avoided Emissions
- No
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Accessory Separate Part Category
- cooling accessory
- Warranty In Months
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Service Catalog ItemSpare part
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1630
China Rohs In ScopeNo
Product Kit IdentifierN
Product Or Component Typefan
Sustainable PackagingNo
Accessory Separate Part Typeinternal fan
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Eu Rohs Directive
- Compliant By Exemption
Product Compatibilityvariable speed drive ATV950 wall mount 1.5-1.5 kW 380...480 V, variable speed drive ATV950 wall mount 2.2-2.2 kW 380...480 V, variable speed drive ATV950 wall mount 3-3 kW 380...480 V, variable speed drive ATV950 wall mount 4-4 kW 380...480 V, variable speed drive ATV950 wall mount 5.5-5.5 kW 380...480 V, variable speed drive ATV950 wall mount 7.5-7.5 kW 380...480 V, variable speed drive ATV950 wall mount 11-11 kW 380...480 V, variable speed drive ATV950 wall mount 15-15 kW 380...480 V, variable speed drive ATV950 wall mount 18.5-18.5 kW 380...480 V, variable speed drive ATV950 wall mount 22-22 kW 380...480 Vvariable speed drive ATV650 wall mount 0.75-0.75 kW 380...480 V, variable speed drive ATV650 wall mount 1.5-1.5 kW 380...480 V, variable speed drive ATV650 wall mount 2.2-2.2 kW 380...480 V, variable speed drive ATV650 wall mount 3-3 kW 380...480 V, variable speed drive ATV650 wall mount 4-4 kW 380...480 V, variable speed drive ATV650 wall mount 5.5-5.5 kW 380...480 V, variable speed drive ATV650 wall mount 7.5-7.5 kW 380...480 V, variable speed drive ATV650 wall mount 11-11 kW 380...480 V, variable speed drive ATV650 wall mount 15-15 kW 380...480 V, variable speed drive ATV650 wall mount 18.5-18.5 kW 380...480 V, variable speed drive ATV650 wall mount 22-22 kW 380...480 V, variable speed drive ATV950 wall mount 0.75-0.75 kW 380...480 V
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- fan
ETIM
- ETIM 8
- EC011012
ETIM 9EC011012
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
