Schneider Electric VX5VPS6001 Cooling Fan Kit for Altivar Process 600/900 Drives, 1.9 kg, 55-160 kW
Schneider Electric VX5VPS6001 Cooling Fan Kit for Altivar Process 600/900 Drives, 1.9 kg, 55-160 kW
- MPN: VX5VPS6001
- PPN: SCH-VX5VPS6001
- UNSPSC: 39122001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$926.58/ EA
Description

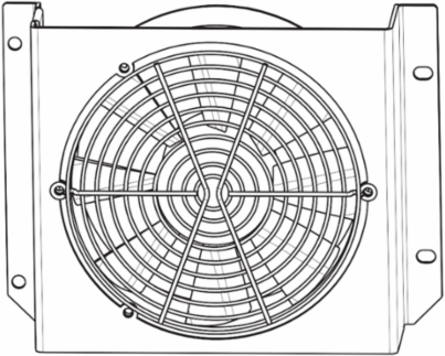

This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 55kw to 160kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 30.4cm (width) x 30.8cm (Length) x 9.8cm (Height) and weighs 1.904kg. This power fan is compatible with ATV630C11N4 to C16N4, ATV930D55M3C to D75M3C, ATV930C11N4 to C16N4, ATV930C11N4C to C16N4C. This kit includes 1 power fan for IP21 and IP55 drive, 1 bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.
Features
- Original Schneider Electric wear part
- High quality construction
- Limited Noise
- Higher efficiency
- Increase Drive lifetime
- Reduce drive downtime possibility
Specifications
Specifications
- Country of Origin
- France, Georgia
Important Information Attributes
- Kit Composition
- fan, mounting bracket, instruction sheet
- Local Publishable Date
- 2025-07-10
- Serviceability
- No
- Service Catalog Item
- Spare part
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- Return Indicator
- Y
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Accessory Separate Part Category2
- cooling accessory
- Medium Desc
- Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 55 to 160kW
- Country Of Origin 7
- US
- Product Kit Identifier
- N
Local Data StatusPublishable
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Legacy WEEE ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Product Contributes To Saved And Avoided EmissionsNo
Package Weight Lbs2.013 kg
Product Or Component Typefan
Sustainable PackagingNo
Accessory Separate Part Type2fan kit
Country Of Origin 6SE
Stocking FlagN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Product Compatibilityvariable speed drive ATV930 wall mount 75-75 kW 200...240 V, variable speed drive ATV930 wall mount 110-110 kW 380...480 V, variable speed drive ATV930 wall mount 132-132 kW 380...480 V, variable speed drive ATV930 wall mount 160-160 kW 380...480 V, variable speed drive ATV630 wall mount 55-55 kW 200...240 V, variable speed drive ATV630 wall mount 75-75 kW 200...240 V, variable speed drive ATV630 wall mount 110-110 kW 380...480 V, variable speed drive ATV630 wall mount 132-132 kW 380...480 V, variable speed drive ATV630 wall mount 160-160 kW 380...480 V, variable speed drive ATV930 wall mount 55-55 kW 200...240 V
Mercury FreeYes
General Attributes
- Product Or Component Type
- fan
