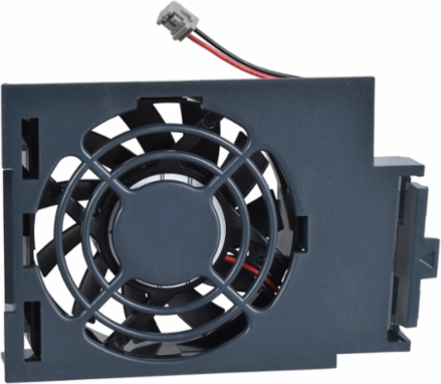

Schneider Electric VZ3V1213 Wear part, fan kit, for variable speed drive, Altivar 61, Altivar 71, Altivar Process 600 900, from 220 to 315kW

MPN: VZ3V1213
PPN: SCH-VZ3V1213
UNSPSC: 39122001

$207.09

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is a wear part for Drive Altivar 61, Drive Altivar 71 and Drive Altivar Process 600, Altivar Process 900. This Fan for variable speed drive is a cooling accessory. it works for variable speed drives from 220kw to 315kw and a rated voltage from 380V to 480V. This Fan increase the Drive life time. The quantity of Fan required depend on the drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 16cm (width) x 28.5cm (Length) x 7.5cm (Height) and weighs 270kg. This power fan is compatible with ATV630C22N4 to C31N4, ATV930C22N4, ATV930C22N4C to ATV930C31N4C. Internal fan for drive, with 1 unit for ATV630C22N4, 2 units for ATV630C25N4, and 3 units for ATV630C31N4. Internal fan for drive, with 1 unit for ATV930C22N4(C), 2 units for ATV930C25N4C, and 3 units for ATV930C31N4C Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.Drives for variable torque from 0.75 to 800 kW. Drives for heavy duty industry from 0.37 to 630 kW.

Features

Original Schneider Electric wear part
High quality construction
Limited Noise
Higher efficiency
Increase Drive lifetime
Reduce drive downtime possibility

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Important Information Attributes

Kit Composition	fan, mounting bracket, instruction sheet
Local Publishable Date	2025-07-10
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Product Contributes To Saved And Avoided Emissions	No
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Accessory / Separate Part Category	cooling accessory
Nbr. Of Units In Pkg.	1

Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Service Catalog Item	Spare part
Scope Perimeter	At least in Europe
Product Kit Identifier	N
Product Or Component Type	fan
Sustainable Packaging	No
Accessory / Separate Part Type	fan kit
Customs Code	8414591500

Environment Attributes Main

Product Compatibility

variable speed drive ATV930 wall mount 250-250 kW 380...480 V 2 per drivevariable speed drive ATV930 wall mount 315-315 kW 380...480 V 3 per drive, variable speed drive ATV61, variable speed drive ATV71, variable speed drive ATV61 Plus, variable speed drive ATV71 Plus, variable speed drive ATV71Q, variable speed drive ATV61Q, variable speed drive ATV630 wall mount 220-220 kW 380...480 V 1 per drivevariable speed drive ATV630 wall mount 250-250 kW 380...480 V 2 per drivevariable speed drive ATV630 wall mount 315-315 kW 380...480 V 3 per drive, variable speed drive ATV930 wall mount 220-220 kW 380...480 V 1 per drive
