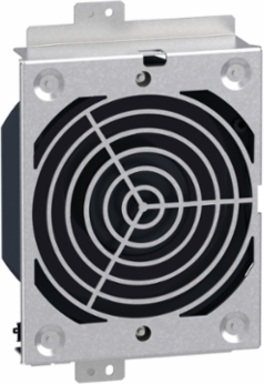

Altivar Process 600/900 Cooling Fan Kit for Drives 30-90kW
Schneider Electric

Schneider Electric VX5VPS5001 Altivar Process 600/900 Cooling Fan Kit for Drives 30-90kW

  • MPN: VX5VPS5001
  • PPN: SCH-VX5VPS5001
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $480.82

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is a wear part for Drive Altivar 340, Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 30kw to 90kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 30.5cm (width) x 30.5cm (Length) x 9.5cm (Height) and weighs 1.14kg. This power fan is compatible with ATV340D45N4E to D75N4E, ATV*30D30M3 to D45M3, ATV*30D55N4 to D90N4, ATV*50D55N4 to D90N4, ATV650D55N4E to D90N4E and ATV930D30M3C to D45M3C. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. IoT-ready variable speed drives for safety and heavy duty applications from 0.75 to 75kW (1 to 100Hp). Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Argentina

    Important Information Attributes

    Kit Composition
    fan, mounting bracket, instruction sheet
    Local Publishable Date
    2025-07-10
    Stocking Flag
    N
    Serviceability
    No
    Service Catalog Item
    Spare part
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1630
    China Rohs In Scope
    No
    Product Kit Identifier
    N
    Product Or Component Type
    fan
    Sustainable Packaging
    No
    Accessory / Separate Part Type
    fan kit
    Package Weight(Lbs)
    1.208 kg
    Warranty (In Months)
    18
    Local Data StatusPublishable
    Return IndicatorY
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ScopeOut
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    Product Contributes To Saved And Avoided EmissionsNo
    Product AvailabilityStock - Normally stocked in distribution facility
    ReturnabilityYes
    Accessory / Separate Part Categorycooling accessory
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8414596590

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Take Back
    No
    Eu Rohs Directive
    Compliant By Exemption
    Product Compatibilityvariable speed drive ATV930 wall mount 37-37 kW 200...240 V, variable speed drive ATV930 wall mount 45-45 kW 200...240 V, variable speed drive ATV930 wall mount 55-55 kW 380...480 V, variable speed drive ATV930 wall mount 75-75 kW 380...480 V, variable speed drive ATV930 wall mount 90-90 kW 380...480 Vvariable speed drive ATV340 55-55 kW 380...480 Vvariable speed drive ATV340 75-75 kW 380...480 Vvariable speed drive ATV630 wall mount 30-30 kW 200...240 V, variable speed drive ATV630 wall mount 37-37 kW 200...240 V, variable speed drive ATV630 wall mount 45-45 kW 200...240 Vvariable speed drive ATV630 wall mount 55-55 kW 380...480 V, variable speed drive ATV630 wall mount 75-75 kW 380...480 V, variable speed drive ATV630 wall mount 90-90 kW 380...480 V, variable speed drive ATV930 wall mount 30-30 kW 200...240 V, variable speed drive ATV340 45-45 kW 380...480 V
    Mercury FreeYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    fan

    ETIM

    ETIM 8
    EC011012
    ETIM 9EC011012

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
