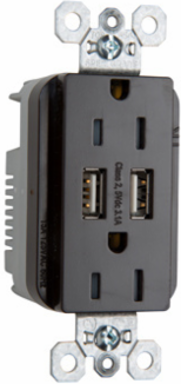

Pass & Seymour TR5262USB 15A 125V Tamper-Resistant USB Outlet with 3.1A Charging, Brown
Pass & Seymour TR5262USB 15A 125V Tamper-Resistant USB Outlet with 3.1A Charging, Brown
- MPN: TR5262USB
- UPC: 785007031782
- PPN: P-S-TR5262USB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$56.98/ EA
Description
Designed for commercial markets with strength and durability in mind, this combination duplex receptacle and two USB Type-A features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
- Auto-ground clip assures positive ground.
- AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
- Multiple color options available.
- Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
- Stainless steel auto-ground clips assure positive ground.
- Wire Size: #14 - #10 AWG Copper Conductor Only
Specifications
Specifications
- Depth
- 1.392 in
- Standard
- FSUL
- Width
- 1.693 in
- Standard
- cULus
- Voltage
- 125.0 V
- Number of USBs
- 2.0
- USB Amperage
- 3.1 A
- Standard
- CSA Listed
- Wire Size
- 14 - 10 AWG
- Features
- USB-A Charging
- Outlet Type
- USB-Charging
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Features
- Single Piece Plated Steel Mounting Strap
- Finish
- Matte
Height2.677 in
StandardRoHS
Country of OriginChina
Amperage15.0 A
StandardFEDSPEC
StandardUL Listed
USB Wattage15.0 W
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Is Tamper-ResistantYes
Number of Receptacles2.0
Outlet TypeTamper-Resistant
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Dielectric StrengthWithstands 2000V minimum
ColorBrown
Product LinePass & Seymour
