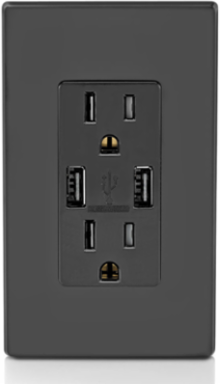

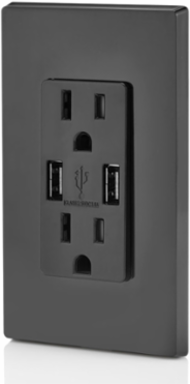

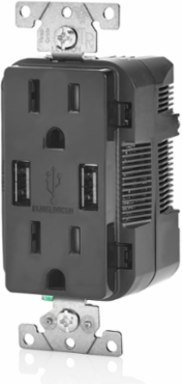

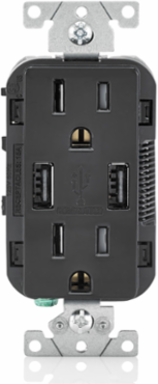

Leviton T5632-E 15A Tamper-Resistant Outlet & 3.6A Dual USB Charger, Black
- MPN: T5632-E
- UPC: 078477683927
- PPN: LEV-T5632-E
CAD
$42.84
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Combination Duplex Receptacle/Outlet and USB Charger. 15 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - Black
Features
- Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
- Smart chip recognizes and optimizes the charging requirements of individual devices
- USB Ports are positioned vertically providing more space for maneuvering and reducing stress on USB cables
- Compatible with USB 3.0, 2.0, 1.1 devices
- Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
- Easy to install. Can replace existing outlets
- No data transfer capability
- SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
- POWERFUL – Two high-powered charging ports with 3.6A of charging power
- CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
- EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
Documentation & Downloads
Specifications
Standards and Certifications
- Warranty
- 5-Year Limited
- UL 1310
- Yes
- FCC Part 15
- Class B
NOM057
UL 498Yes
ListedcCSAus
Material Specifications
- Amperage
- 15 A
- Terminal Accom.
- 14-12 AWG
- Cover Material
- Thermoplastic
- Torque Range
- 12-14 inch pounds
- Termination
- Back & Side
Product IDStamped on Strap
ColorBlack
Strap MaterialSteel
Body MaterialThermoplastic
Mechanical Specifications
- Amperage
- 15 A
- Terminal Accom.
- 14-12 AWG
- Color
- Black
- Termination
- Back & Side
Product IDStamped on Strap
Torque Range12-14 inch pounds
GradeResidential/Commercial Specification Grade
Product Features
- Amperage
- 15 A
- NEMA
- 5-15R
- Brand
- Decora
- Voltage
- 125 VAC
- Horsepower Rating
- 15A-1/2 HP
- Type
- Type A/A Duplex Receptacle
Ratings15A-125V
GradeResidential/Commercial Specification Grade
Country Of OriginChina
GroundingGrounding
Product TypeOutlet/USB Combo
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- Cover Material
- Thermoplastic
- Operating Temperature
- -10°C to 40°C
ColorBlack
Strap MaterialSteel
Body MaterialThermoplastic
Electrical Specifications
- Amperage
- 15 A
- Ratings
- 15A-125V
- Grounding
- Grounding
FlammabilityRated V-0 per UL 94
Operating Temperature-10°C to 40°C
Horsepower Rating15A-1/2 HP
