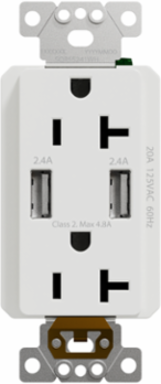

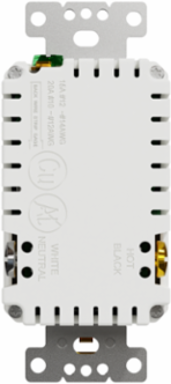

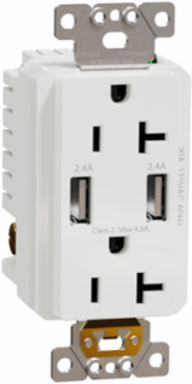

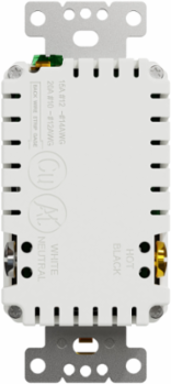

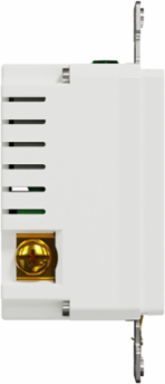

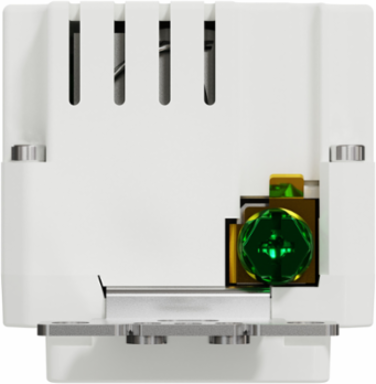

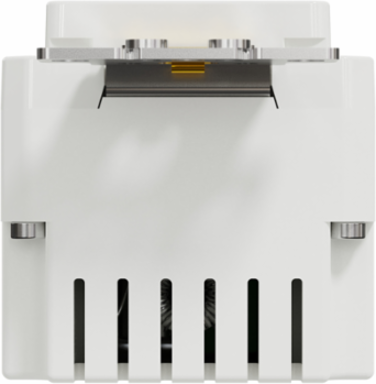

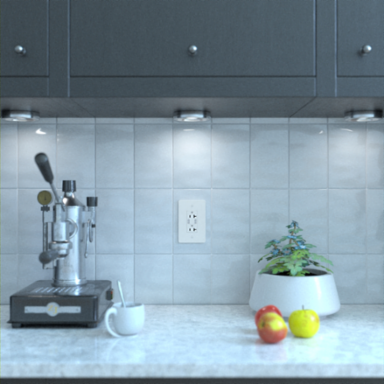

Square D SQR55241WH X Series 20A 125V USB A/A Duplex Outlet, 4.8A, Tamper Resistant, Matte White
- MPN: SQR55241WH
- UPC: 785901548669
- PPN: SCH-SQR55241WH
CAD
$44.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
X Series residential wiring devices USB charger/receptable offers an array of new features, such as flush mounting, easy installation, and connectivity. Users can plug 2 USB cables and 2 power cords at the same time for applications where power density is important. This device supports 5 volts DC and up to 2.4A per USB A port (4.8A total) to quickly charge modern electronic devices. This outlet socket has a 20A current rating. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It is made of metal and plastic making it resistant and durable. This USB receptacle has a white frame. It is tamper resistant with invisible black shutters and it features protective painted surface treatment. This USB receptacle benefits from an elegant matt finishing, constituting an added-value for your interior design. It has a width of 44mm, a height of 103mm and a depth of 45mm. By satisfying the UL 1310 and the UL 498 standard, this USB receptacle is cUlus certified.
Features
- Equipped with two integrated USB Type-A ports delivering a combined 4.8A of charging current, this outlet provides rapid, direct power to smartphones, tablets, and smart home accessories. By eliminating the need for clutter-inducing charging bricks, it frees up the duplex receptacles for standard appliances while optimizing charging efficiency via smart device-detection technology.
- Featuring a full 20-Amp, 125-Volt capacity, this X Series outlet is engineered to safely handle demanding electrical loads like kitchen appliances, power tools, and commercial office equipment. This premium rating prevents the overheating and premature wear common with standard 15A residential alternatives, making it an ideal choice for both high-end custom homes and high-traffic commercial environments.
- Built with an internal, discrete shutter mechanism, this Tamper-Resistant (TR) receptacle meets strict National Electrical Code requirements by blocking the insertion of foreign objects like keys, hairpins, or paperclips. The spring-loaded shutters only open when a simultaneous, equal pressure is applied by a standard two-prong plug, ensuring maximum safety for children without compromising daily plug-in usability.
- Featuring a premium, non-reflective matte white finish, this outlet offers a sleek, contemporary look that resists fingerprints, smudges, and UV discoloration over time. The modular X Series chassis allows you to easily snap on a matching screwless wallplate (sold separately) for a flush, high-end architectural appearance that upgrades any residential or commercial interior.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Name
- X Series
- Range
- Square D X Series
Product Or Component TypeUSB charger + socket-outlet
Colourwhite
Complementary
- Network Frequency
- 60 Hz
- Number Of Modules
- 1
- Number Of Gangs
- 1 gang
- Surface Finish
- matt

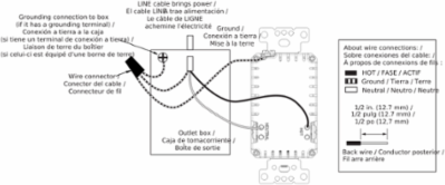

- Connections - Terminals
- phase and neutral 2 screw terminal || earth 1 screw terminal
- Mounting Mode
- by screws
- Integrated Connection Type
- 2 socket-outlet 20 A || 2 USB type A 2.4 A
- Quantity Per Set
- 1 piece
- Width
- 44 mm
- Device Application
- power supply
- Outlet Poles Configuration
- 2 x 2P + E
Height103 mm
Device Mountingflush
Network TypeAC
Socket Additional Informationtamper resistant
Device Presentationmechanism with fixing frame
Earth Circuitself earthing
Materialplastic: strap || metal: fixing frame
Outlet StandardNEMA
Depth44 mm
[Ue] Rated Operational Voltage125 V
Environment
- Product Certifications
- cULus
StandardsUL 498 || UL 1310 || FCC part 15 class B || ICES-003
Contractual warranty
- Warranty
- 2 years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011022_V1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2011022_V1
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
