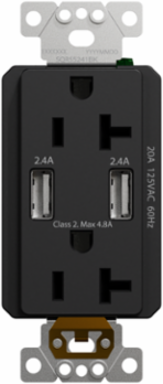

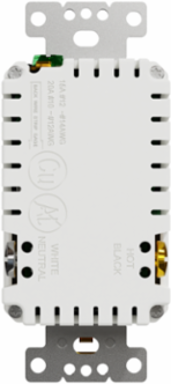

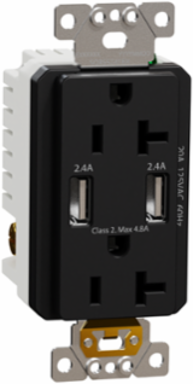

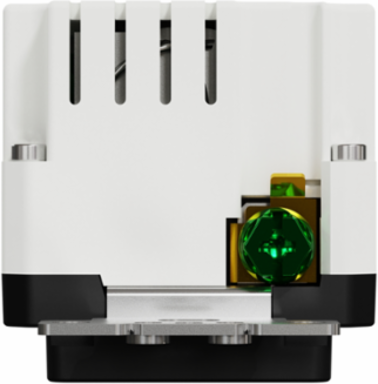

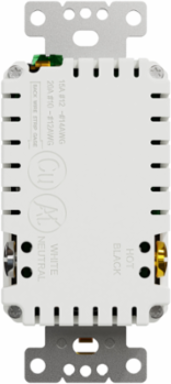

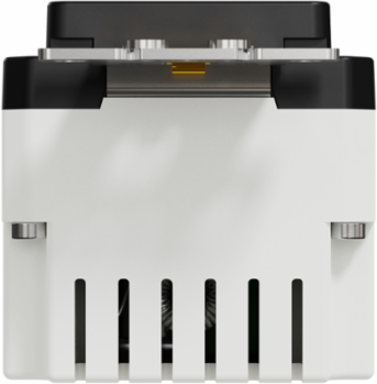

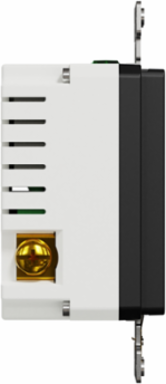

X Series 20A 125V Tamper Resistant USB A/A Duplex Outlet, 4.8A, Black
X Series 20A 125V Tamper Resistant USB A/A Duplex Outlet, 4.8A, Black
X Series 20A 125V Tamper Resistant USB A/A Duplex Outlet, 4.8A, Black
Square D

Square D SQR55241BK X Series 20A 125V Tamper Resistant USB A/A Duplex Outlet, 4.8A, Black

  • MPN: SQR55241BK
  • UPC: 785901546566
  • PPN: SCH-SQR55241BK

CAD

$50.12

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

X Series residential wiring devices USB charger/receptable offers an array of new features, such as flush mounting, easy installation, and connectivity. Users can plug 2 USB cables and 2 power cords at the same time for applications where power density is important. This device supports 5 volts DC and up to 2.4A per USB A port (4.8A total) to quickly charge modern electronic devices. This outlet socket has a 20A current rating. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It is made of metal and plastic making it resistant and durable. This USB receptacle has a black frame. It is tamper resistant with invisible black shutters and it features protective painted surface treatment. This USB receptacle benefits from an elegant matt finishing, constituting an added-value for your interior design. It has a width of 44mm, a height of 103mm and a depth of 45mm. By satisfying the UL 1310 and the UL 498 standard, this USB receptacle is cUlus certified.

Documentation & Downloads

Specifications

Key Specifications

Aesthetic Name
X Series
Range
Square D X Series
Product Or Component TypeUSB charger + socket-outlet
Colourblack

Complementary

Network Frequency
60 Hz
Number Of Modules
1
Number Of Gangs
1 gang
Surface Finish
matt
Socket Additional Information
tamper resistant
Device Presentation
mechanism with fixing frame
Earth Circuit
self earthing
Material
plastic: strap || metal: fixing frame
Outlet Standard
NEMA
Depth
44 mm
[Ue] Rated Operational Voltage
125 V
Height103 mm
Device Mountingflush
Network TypeAC
Surface Treatmentpainted

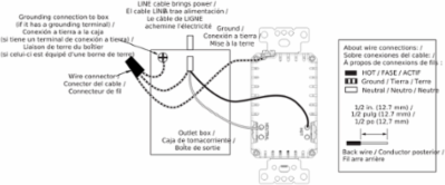

Connections - Terminalsphase and neutral 2 screw terminal || earth 1 screw terminal
Mounting Modeby screws
Integrated Connection Type2 socket-outlet 20 A || 2 USB type A 2.4 A
Quantity Per Set1 piece
Width44 mm
Device Applicationpower supply
Outlet Poles Configuration2 x 2P + E

Environment

Product Certifications
cULus
StandardsUL 498 || UL 1310 || FCC part 15 class B || ICES-003

Contractual warranty

Warranty
2 years

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2011022_V1
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
ENVEOLI2011022_V1
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
