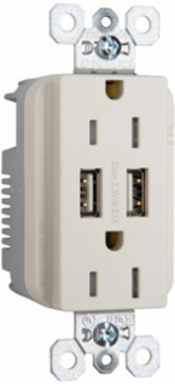

Pass & Seymour TR5262USBLA 15A 125V Tamper-Resistant USB Outlet, Light Almond, 3.1A Charging Capability
Pass & Seymour TR5262USBLA 15A 125V Tamper-Resistant USB Outlet, Light Almond, 3.1A Charging Capability
- MPN: TR5262USBLA
- UPC: 785007031683
- PPN: P-S-TR5262USBLA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$56.98/ EA
Description
Designed for commercial markets with strength and durability in mind, this combination duplex receptacle and two USB Type-A features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
- Auto-ground clip assures positive ground.
- AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
- Multiple color options available.
- Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
- Stainless steel auto-ground clips assure positive ground.
- Wire Size: #14 - #10 AWG Copper Conductor Only
Specifications
Specifications
- Depth
- 1.392 in
- Height
- 2.677 in
- Width
- 1.693 in
- Country of Origin
- China
- Standard
- cULus
- Voltage
- 125.0 V
- Number of USBs
- 2.0
- USB Amperage
- 3.1 A
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Is Tamper-Resistant
- Yes
- Number of Receptacles
- 2.0
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-15R
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Features
- Single Piece Plated Steel Mounting Strap
- Product Line
- Pass & Seymour
Special FeaturesDesigned for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices.
PhaseSingle
StandardFSUL
StandardRoHS
Amperage15.0 A
StandardFEDSPEC
StandardUL Listed
USB Wattage15.0 W
StandardCSA Listed
Wire Size14 - 10 AWG
FeaturesUSB-A Charging
Outlet TypeUSB-Charging
Number of PolesDouble Pole
Application SectorCommercial
Environmental ConditionsUL94 V2
Wire Connection TypeScrew Terminals
Dielectric StrengthWithstands 2000V minimum
ColorLight Almond
