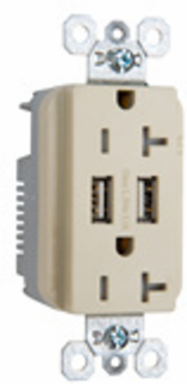

Pass & Seymour TR5362USBI 20 Amp 125 Volt Ivory Tamper-Resistant USB Outlet, 3.1A Charging Capability
Pass & Seymour TR5362USBI 20 Amp 125 Volt Ivory Tamper-Resistant USB Outlet, 3.1A Charging Capability
- MPN: TR5362USBI
- UPC: 785007031584
- PPN: P-S-TR5362USBI
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$47.15/ EA
Description
Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
- One-piece heat-treated triple-wipe brass power contacts.
- AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
- Multiple color options available.
- Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
- Stainless steel auto-ground clips assure positive ground.
- Wire Size: #14 - #10 AWG Copper Conductor Only
Specifications
Specifications
- Depth
- 1.392 in
- Standard
- FSUL
- Standard
- RoHS
- Standard
- cULus
- Voltage
- 125.0 V
- Number of USBs
- 2.0
- USB Amperage
- 3.1 A
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Is Tamper-Resistant
- Yes
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
- Color
- Ivory
- Product Line
- Pass & Seymour
Height2.677 in
Width1.693 in
Country of OriginVietnam
Amperage20.0 A
StandardFEDSPEC
StandardUL Listed
USB Wattage15.0 W
StandardCSA Listed
Wire Size14 - 10 AWG
FeaturesUSB-A Charging
Outlet TypeUSB-Charging
Outlet TypeStraight Blade
Outlet TypeTamper-Resistant
NEMA Configuration Code5-20R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Wire Connection TypeInternal Pressure Plates
FinishMatte
