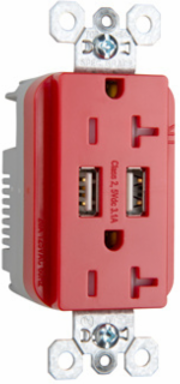

Pass & Seymour TR5362USBRED 20A 125V Tamper-Resistant USB Outlet, Red, 3.1A Charging Capability
Pass & Seymour TR5362USBRED 20A 125V Tamper-Resistant USB Outlet, Red, 3.1A Charging Capability
- MPN: TR5362USBRED
- UPC: 785007031607
- PPN: P-S-TR5362USBRED
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$59.16/ EA
Description
Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
- One-piece heat-treated triple-wipe brass power contacts.
- AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
- Multiple color options available.
- Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
- Stainless steel auto-ground clips assure positive ground.
- Wire Size: #14 - #10 AWG Copper Conductor Only
Specifications
Specifications
- Depth
- 1.392 in
- Height
- 2.677 in
- Phase
- Single
- Country of Origin
- China
- Standard
- cULus
- Voltage
- 125.0 V
- Number of USBs
- 2.0
- USB Amperage
- 3.1 A
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Is Tamper-Resistant
- Yes
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Environmental Conditions
- UL94 V2
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Product Line
- Pass & Seymour
- Operating Temperature
- -40°-60°C
- Wire Connection Type
- Internal Pressure Plates
Special FeaturesDesigned for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices.
Width1.693 in
StandardFSUL
StandardRoHS
Amperage20.0 A
StandardFEDSPEC
StandardUL Listed
USB Wattage15.0 W
StandardCSA Listed
Wire Size14 - 10 AWG
FeaturesUSB-A Charging
Outlet TypeUSB-Charging
Outlet TypeStraight Blade
Outlet TypeTamper-Resistant
NEMA Configuration Code5-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
ColorRed
Operating Temperature Min-40.0 °C
Dielectric StrengthWithstands 2000V minimum
