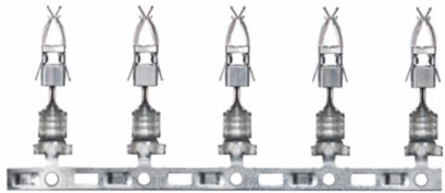

Weidmuller 1893990000 FEKO ET ZRV2.5 1.5-2.5
- MPN: 1893990000
- PPN: WDM-1893990000
CAD
$1.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Z-series, Crimp contact, 4.15 mm, Direct mounting
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 4.15 mm |
|---|---|
| Height | 19.8 mm |
| Depth | 3.1 mm |
| Net weight | 0.43 g |
| Width (inches) | 0.163 inch |
|---|---|
| Height (inches) | 0.78 inch |
| Depth (inches) | 0.122 inch |
Additional Technical Data
| Installation advice | Direct mounting |
|---|
Classifications
| ETIM 6.0 | EC000796 |
|---|---|
| eClass 9.0 | 27-44-02-04 |
| eClass 10.0 | 27-44-02-04 |
| ETIM 7.0 | EC000796 |
|---|---|
| eClass 9.1 | 27-44-02-04 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Spring contact |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
|---|
Conductors For Clamping (Rated Connection)
| Type of connection | Spring contact |
|---|
