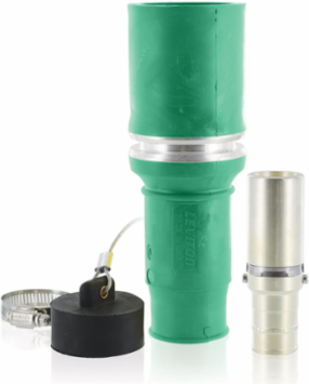

Leviton 49F44-G Rhino-Hide 444 MCM Female Plug, 1000 Volt, 796 Amp, Type 3R
Leviton 49F44-G Rhino-Hide 444 MCM Female Plug, 1000 Volt, 796 Amp, Type 3R
- MPN: 49F44-G
- UPC: 078477280751
- PPN: LEV-49F44-G
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$892.62/ EA
Description
Rhino-Hide 49 Series Single Pole Female Connector (Contact, Insulator, & Dust Cap), Industrial Grade, Crimped, 444 MCM Cable, 1000 Volt, 796 Amp Max - GREEN
Features
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Color-coded connector insulator for quick visual identification of circuit and phase connections
- UV stable, high-performance TPV insulator resists cracking for greater service life
- Leviton plugs mate with other manufacturers' high-amperage single pole plugs and receptacles for fast, easy change out
Specifications
Standards and Certifications
- NEMA Rating
- Type 3R
ULRecognized Component
Material Specifications
- Cable Clamp
- Stainless Steel
- Connector Retention Ring
- Anodized Aluminum
- Female Contact
- Silver-Plated High Conductivity Alloy
Connector InsulatorSantoprene TPV
Dust CapSantoprene TPV
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Color
- Green
Electrical Specifications
- Max. Amperage
- 796
Max. Voltage1000 Volt
Downloads
