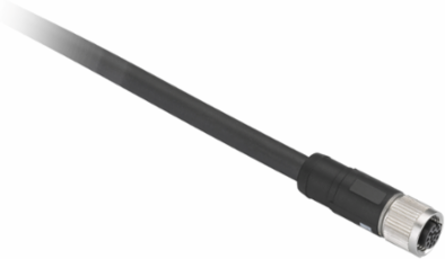

Telemecanique Sensors XZCP29P11L2 Pre wired connectors XZ, straight female, M12, 8 pins, cable PUR 2 m

Pre wired connectors XZ, straight female, M12, 8 pins, cable PUR 2 m
  • MPN: XZCP29P11L2
  • PPN: TES-XZCP29P11L2
  • UNSPSC: 39121528

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$75.32/ EA

Description

This XZ Connection Cable has a straight 8-pin M12 connectors with a 2 meter PUR cable connection with bare end flying leads. It has a stainless steel 316L enclosure with IP65 / IP67 / IP69K degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with cULus standard. It is compatible with XUSL2E and XUSL4E safety light curtains receiver. It is also compatible with XCSDMP coded magnetic switches. It is designed to be used in static condition at a temperature from -40°C to +90°C.

Specifications

Environment

Product Certifications
cULus
Ambient Air Temperature For Storage
-35-100 °C
Ambient Air Temperature For Operation-35-90 °C static || -5-90 °C flexing
Ip Degree Of ProtectionIP67

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Collar Material
stainless steel 316L
Cable Outer Diameter
5.2 mm
Wire Insulation Material
PUR
Cable Connector Fixing
screw-on
[In] Rated Current
2 A
Status Led
without
Contact Resistance
5000 µOhm
Electrical Connectionstraight female connector M12, 8 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage30 V AC || 36 V DC
Cable Length2 m
Cable Composition8 x 0.25 mm²
Net Weight0.1 kg

Specifications

Series Name
Application
Accessory / Separate Part Category
cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
