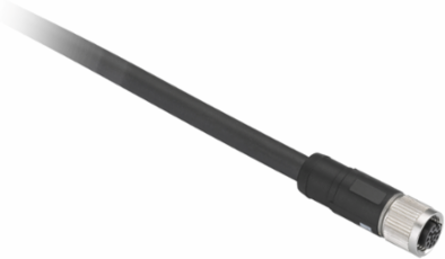

Telemecanique Sensors XZCP29P11L5 Pre wired connectors XZ, straight female, M12, 8 pins, cable PUR 5 m
- MPN: XZCP29P11L5
- PPN: TES-XZCP29P11L5
- UNSPSC: 39121528
CAD
$110.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XZ Connection Cable has a straight 8-pin M12 connectors with a 5 meter PUR cable connection with bare end flying leads. It has a stainless steel 316L enclosure with IP65 / IP67 / IP69K degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with cULus standard. It is compatible with XUSL2E and XUSL4E safety light curtains receiver. It is also compatible with XCSDMP coded magnetic switches. It is designed to be used in static condition at a temperature from -40°C to +90°C.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- Application
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- stainless steel 316L
- Cable Outer Diameter
- 5.2 mm
- Wire Insulation Material
- PUR
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 2 A
- Status Led
- without
Electrical Connectionstraight female connector M12, 8 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage30 V AC || 36 V DC
Cable Length5 m
Cable Composition8 x 0.25 mm²
Contact Resistance5000 µOhm
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -35-100 °C
Ambient Air Temperature For Operation-35-90 °C static || -5-90 °C flexing
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
