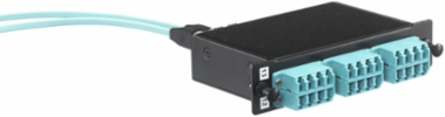

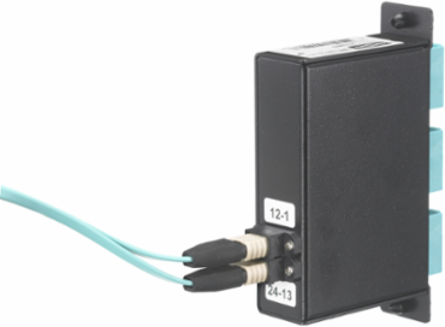

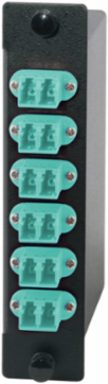

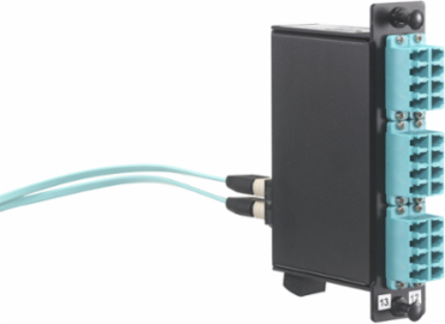

Hubbell Premise Wiring OCLC50G Fiber Cassette LC-MT 10GbE OM3 50/125 Multimode 2.2 Inch
- MPN: OCLC50G
- UPC: 662620200538
- PPN: HBL-OCLC50G
- UNSPSC: 43223310
CAD
$1175.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fiber Cassette, Plug and Play Cassette, LC-MT, Multi Mode 50/125, 10GbE.
Features
- Compact Universal Design
- Ten Gigabit Ethernet Assurance
- Quick and Easy Plug-n-Play Installation
- Standard Product
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Industry Standard(s) | Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS |
| Application | Interconnect |
| Environmental Conditions | Indoor |
| Fiber Type | OM3 |
| Repeatability | 0.1 dB |
| Service Life | 500 matings |
| Standard | Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS |
| Temperature Rating | 0C to 70C |
| Connectivity | Cassette |
| Style | LC Duplex 12F |
| Description - Invoice | FIBR,CASSET,LCD-MPO,OM3,12F,TYPA,AQ |
| Harmonization Code | 8536700000 |
| MSDS Flag | No |
| Material - Mounting Hardware | Snap-In |
| Polarity | Type A |
| BOX SIZE | 5.200x7.600x9.400 (in) |
| Carton - Number of Sub Packs | 25 |
| Carton - SCC-14 Next Lower Level Sub Pack | 662620200538 |
| Each - Pack Description | Each |
| NAICS Code | 3342104145 |
| Width | 2.200 in |
|---|---|
| Performance | Optical - Total insertion loss - Less than 1.5dB (test data included) |
| Color | Aqua |
| Fiber Size | 250 Micron |
| Insertion Loss | 0.75 dB Max |
| Return Loss | 55 |
| Special Features | Standard Product |
| Sub Brand | OptiChannel |
| General Literature Asset 1 Display Text | Education Application Guide |
| Display Size | 5.1" X 1.1" |
| Class Code | A68 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | HPWALL2 |
| Material | Ceramic |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 25.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 25 EA |
| Lowest Level UOM | Each |
