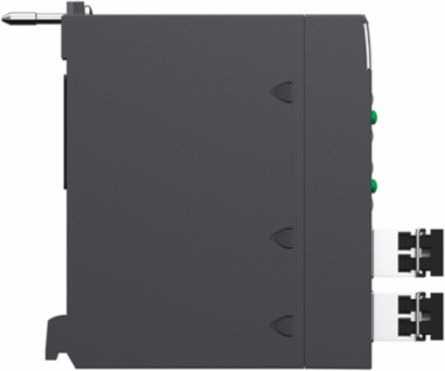

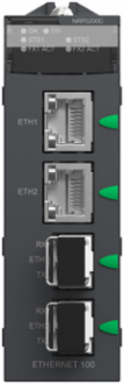

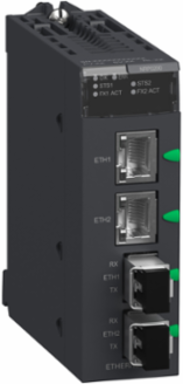

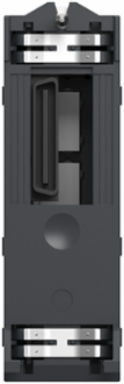

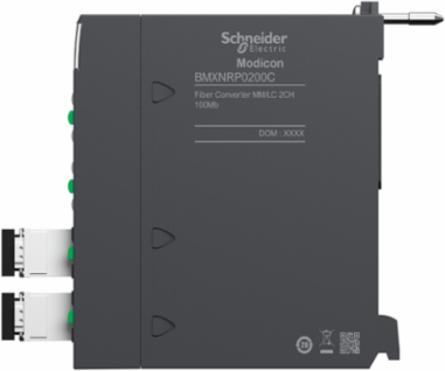

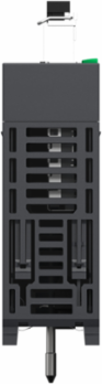

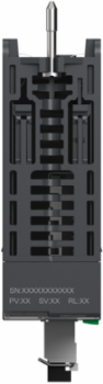

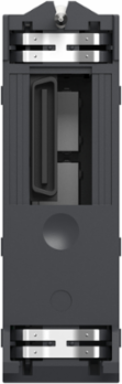

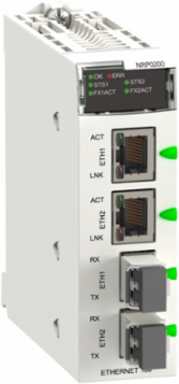

Schneider Electric BMXNRP0200C Fiber Converter Modicon X80 2CH 100Mb 32 mm Wide

MPN: BMXNRP0200C
PPN: SCH-BMXNRP0200C
UNSPSC: 32151703

$1710.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Fiber Converter by Schneider Electric is engineered to facilitate effective communication within your Modicon X80 system, offering two channels for robust data transfer at speeds of up to 100Mb. Its compact 32 mm width ensures it can be seamlessly incorporated into existing setups without taking up excessive space. This converter is not only vital for enhancing network connectivity but also ensures reliable performance, making it an essential component for any industrial control environment. With its advanced capabilities, this device significantly contributes to efficient data management and communication, optimizing the functionality of your automation systems.

Features

Cost-effective modernization and migration
Reduce time to market
Process efficiency
Easy Maintenance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	86 mm

Weight	258 g

Complementary Attributes

Rated Voltage	24 V

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Attenuation	-23.5--14 dB 50/125 µm), -23.5--14 dB 50/125 µm), -20--14 dB 62.5/125 µm), -20--14 dB 62.5/125 µm)-23.5--14 dB 50/125 µm), -23.5--14 dB 50/125 µm), -20--14 dB 62.5/125 µm), -20--14 dB 62.5/125 µm)
Local Signalling	1 LED (green) for power supply status1 LED (red) for error condition (ERR)2 LEDs (green) for link status, 2 LEDs (green) for fiber port state and activity
Certificate Agency	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
Carbon Footprint Of The End Of Life Phase C1 To C4	0.4 kg CO2 eq., 0.41521875
Carbon Footprint Of The Manufacturing Phase A1 To A3	18 kg CO2 eq., 17.57221875
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2402021EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Current Consumption	140 mA typical200 mA maximum
Function Available	hot swap
Number Of Port	2 RJ45 100BASE-TX IEEE 802.3u2 fiber optic 100BASE-FX IEEE 802.3u
Optic Fiber Type	multi mode
Product Or Component Type	fibre optic repeater
Range Of Product	Modicon X80
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	168 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	32 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	32

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristic	gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Receiver Sensitivity	- 31...- 14 dBm, - 31...- 14 dBm
Carbon Footprint Of The Distribution Phase A4	0.0337375312, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1027061719, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	150 kg CO2 eq., 149.8356363636
Local Publishable Date	2026-02-10
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Dielectric Strength	1400 V DC between field and bus500 V DC between channels
Marking	CE
Operating Distance	0...2000 m
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	conformal coating
Returnability	Yes
Sustainable Packaging	Yes
Database Version	2022-01
Height Nominal	100 mm
Rise/Fall Time	3 ns
Customs Code	8517620090
Functional Unit Description	The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	264.9024

Environment Attributes Main

Ambient Air Temperature For Operation	-25-60 °C, -25-60 °C
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2402021EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...13123.36 ft (0...4000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	0-95 %
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	167.9595175668
Environmental Disclosure	ENVPEP2402021EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2402021EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
