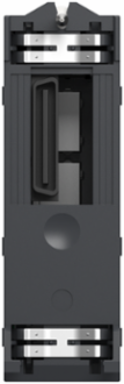

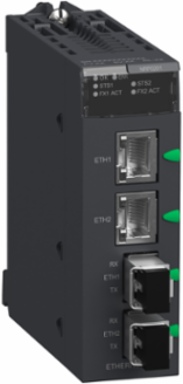

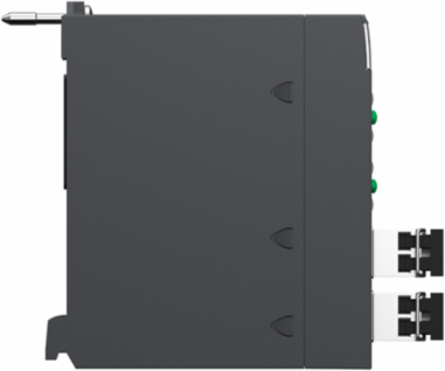

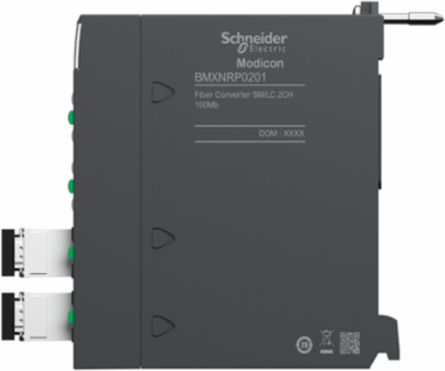

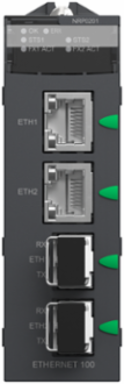

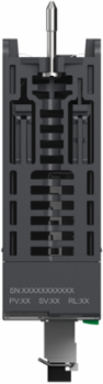

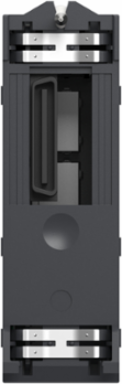

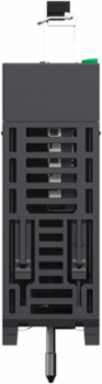

Schneider Electric BMXNRP0201 Modicon X80 Fiber Converter Module, Single Mode, 1310nm, IP20 Rating
- MPN: BMXNRP0201
- PPN: SCH-BMXNRP0201
CAD
$1895.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports single mode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 15000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth86 mm
Complementary Attributes
- Rated Voltage
- 24 V
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Attenuation
- -15--8 dB 9/125 µm), -15--8 dB 9/125 µm)-15--8 dB 9/125 µm), -15--8 dB 9/125 µm)
- Receiver Sensitivity
- - 31...- 8 dBm, - 31...- 8 dBm
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0326914062, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0995214844, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 150 kg CO2 eq., 149.8356363636
- Local Publishable Date
- 2026-01-23
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Dielectric Strength
- 1400 V DC between field and bus500 V DC between channels
- Marking
- CE
- Operating Distance
- 0...15000 m
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon X80
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 167 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 264.9024
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Height Nominal
- 100 mm
- Rise/Fall Time
- 2.5 ns
- Package Weight(Lbs)
- 250.000 g
- Warranty (In Months)
- 18
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
- 10359.375
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 10359.375
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Local Signalling1 LED (green) for power supply status1 LED (red) for error condition (ERR)2 LEDs (green) for link status, 2 LEDs (green) for fiber port state and activity
Certificate AgencyCE, RCM, CSA, EAC, Merchant Navy, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.40234375
Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 17.02734375
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Current Consumption140 mA typical200 mA maximum
Function Availablehot swap
Number Of Port2 RJ45 100BASE-TX IEEE 802.3u2 fiber optic 100BASE-FX IEEE 802.3u
Optic Fiber Typesingle mode
Product Or Component Typefibre optic repeater
ReturnabilityYes
Sustainable PackagingYes
Pep CodeENVPEP2402021EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %32
Width Nominal32 mm
Nbr. Of Units In Pkg.1
Take-backNo
Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]0.022
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3502.464
Customs Code8517620020
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 167.3975367543
- Circularity Profile
- ENVEOLI2402021EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...13123.36 ft (0...4000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2402021EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- fibre optic repeater
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
