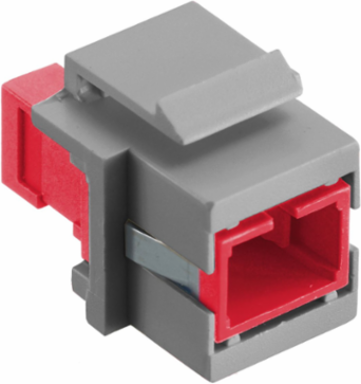

Hubbell Premise Wiring SFFSCSRG Fiber Optic SC Simplex Connectors, Zircon Sleeves, 0.58" X 0.76"
Hubbell Premise Wiring SFFSCSRG Fiber Optic SC Simplex Connectors, Zircon Sleeves, 0.58" X 0.76"
- MPN: SFFSCSRG
- UPC: 662620306025
- PPN: HBL-SFFSCSRG
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$21.20/ EA
Description
Fiber Optic Connectors, Snap-Fit,Flush, SC Simplex, Zircon Sleeves, Red, Gray Housing.
Features
- Snap Fit
- Gray Housing
- Flush
- SC Simplex
- Red Adapter
- Standard Product
Specifications
Specifications
- Color - Housing
- Gray
- Width
- 1.700 in
- Industry Standard(s)
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
- Application
- Data Outlet
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- Connectivity
- Receptacle
- Style
- SC Simplex
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- SFFSCRG
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
Country of OriginTW
Each - Width1.700 in
Size.58" X .76"
ColorRed
MountingFlush
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
Temperature Rating0C to 70C
Mounting TypeFlush
Class CodeA68
Harmonization Code8536700000
MSDS FlagNo
Sub Class CodeA68A690
MaterialCeramic
BOX SIZE4.437x2.000x6.550 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00662620306025
Case Weight32.500 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
