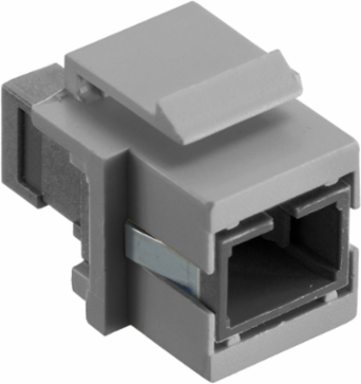

Hubbell Premise Wiring SFFSCSBKG Fiber Optic Connector SC Simplex with Zircon Sleeves, 1.700 Inch Width
Hubbell Premise Wiring SFFSCSBKG Fiber Optic Connector SC Simplex with Zircon Sleeves, 1.700 Inch Width
- MPN: SFFSCSBKG
- UPC: 662620305752
- PPN: HBL-SFFSCSBKG
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$22.48/ EA
Description
Fiber Optic Connectors, Snap-Fit,Flush, SC Simplex, Zircon Sleeves, Black, Gray Housing.
Features
- Snap Fit
- Gray Housing
- Flush
- SC Simplex
- Black Adapter
- Standard Product
Specifications
Specifications
- Country of Origin
- Taiwan
- Width
- 1.700 in
- Size
- .58" X .76"
- Color
- Black
- Mounting
- Flush
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
- Temperature Rating
- 0C to 70C
- Mounting Type
- Flush
- Class Code
- A68
- Harmonization Code
- 8536700000
- MSDS Flag
- No
- Sub Class Code
- A68A690
- Material
- Ceramic
- BOX SIZE
- 4.437x2.000x6.550 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620305752
- Case Weight
- 32.500 lb.
Color - HousingGray
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
ApplicationData Outlet
Insertion Loss0.75 dB
Repeatability0.1 dB
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleSC Simplex
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberSFFSCBKG
Material - Mounting HardwareSnap-In, Keystone
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Certifications
- EU RoHS Indicator
- Contact Manufacturer
