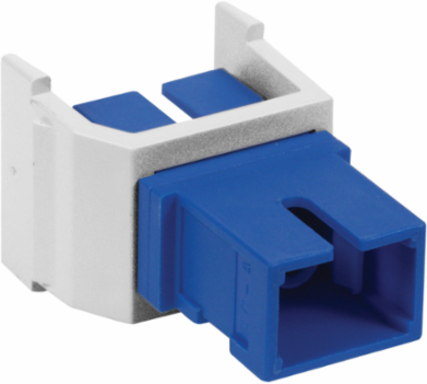

Hubbell Premise Wiring SFSCSAQOW Fiber Optic Connectors SC Simplex Snap-Fit Zircon Sleeves 0.700 Inch Width
- MPN: SFSCSAQOW
- UPC: 662620241685
- PPN: HBL-SFSCSAQOW
- UNSPSC: 43223310
CAD
$22.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Connectors, Snap-Fit, SC, Simplex, Zircon Sleeves, Aqua, Office White Housing.
Features
- Snap Fit
- Office White Housing
- Standard
- SC Simplex
- Aqua Adapter
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Width
- 0.700 in
- Size
- .58" X .76"
- Color
- Aqua
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
- Temperature Rating
- 0C to 70C
- Mounting Type
- Standard
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- SFSCSAQLA;SFSCAQOW
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.600 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Lowest Level UOM
- Each
Color - HousingOffice White
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-3
ApplicationData Outlet
Fiber Size125 Micron
MountingStandard
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleSC Simplex
Description - InvoiceFIBER, SNAP-FIT,SC SMPLX,AQ,ZIRC,OW
Harmonization Code8536700000
MSDS FlagNo
Sub Class CodeHPWALL2
MaterialCeramic
BOX SIZE4.400x3.500x6.400 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620241685
Each - Pack DescriptionEach
NAICS Code3342104145
Certifications
- EU RoHS Indicator
- Yes
