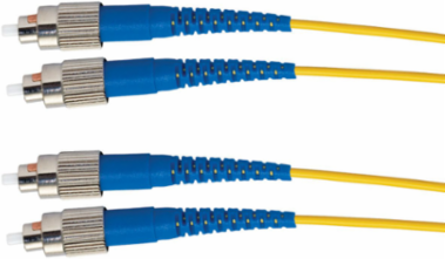

Hubbell Premise Wiring DFPCFCFCS2SM Fiber Optic Patch Cord 2 Meters OS2 Single-Mode FC to FC Yellow
- MPN: DFPCFCFCS2SM
- UPC: 662620316710
- PPN: HBL-DFPCFCFCS2SM
CAD
$180.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fiber Optic Patch Cord 2 Meters OS2 Single-Mode FC to FC Yellow
Documentation & Downloads
Specifications
Additional
- Length
- 2 m (6.56 ft)
- Connector Type
- FC to FC
- Cable Color
- Yellow
- Mated Pair Insertion Loss
- < 0.35 dB (0.15 dB Typical)
- Mating Durability
- 500 Cycles, < 0.75 dB
- Tensile Rating, Short Term
- 50 N (11.24 lb)
- Ferrule Material
- Zirconia Ceramic
- Standards/Compliance
- TIA-568.3, TIA-604-FOCIS, Telcordia GR-326-CORE, TIA-492CAAB, ANSI/ICEA S-83-596, TIA-598
Fiber ModeSinglemode (OS2)
Cable TypeDuplex Zipcord
Fiber TypePlenum
Mated Pair Return Loss> 55 dB
Minimum Bend Radius30 mm (1.2 in)
Cable Diameter2.0 mm to 3.0 mm
Operating Temperature Range0 C to 70 C (32 F to 158 F)
PolarityA-B
