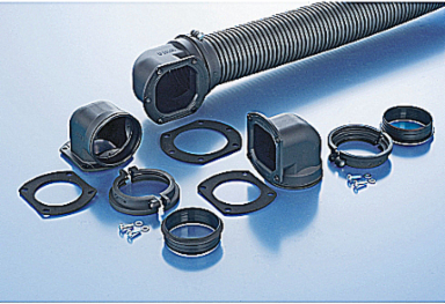

PMA BGO-95 Large-Size Nylon Flexible Conduits and Fittings
PMA BGO-95 Large-Size Nylon Flexible Conduits and Fittings
- MPN: BGO-95
- PPN: T-B-BGO-95
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$96.41/ EA
Description
Nylon GO Flange, 90 Degree Elbow Connector - Fits to NW 95, Color Black
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131717 Electrical conduit elbow
- Brand Name
- PMA
- Application
- For Cable Protection Systems In a Wide Range of Applications
- Color
- Black
- Connection
- 90 Degree Flange
IGCC5746 Electrical conduit elbow
TypeLarge-Size Nylon Flexible Conduits and Fittings
MaterialHigh-Grade Specially Formulated Polyamide/Nylon 6, Flange Seal FGO4 Made from EPDM, Flange Seal FGO4/01 Made from NBR
Trade SizeNW95
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP65
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread material
- Polyamide
- Total length
- 175mm
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit UR
- Y
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter106mm
Model90°-elbow
Construction typeFlange
Thread connection sizeNone
Thread length0mm
Total height149mm
Material sealingOther
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-40 - +105°C
Packaging
- Inner Quantity
- 10
- Outer Dimensions (inches)
- 30.709x14.961x13.78
Outer Quantity20
Weight Uom0.04 lbs. Each
