PMA MKBH-M160-10 Fittings for Nylon Flexible Conduits
- MPN: MKBH-M160-10
- UPC: 786209959133
- PPN: T-B-MKBH-M160-10
CAD
$23.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

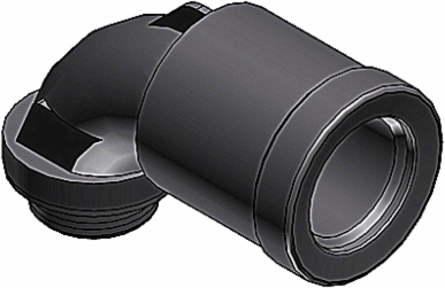

PMAFIX Pro 90 Degree Grey Two-Piece Elbow with Metric Threads, Elbow Material - Polyamide 6, Thread Material - Nickel-Plated Brass, Thread Size - M16x1.5, Thread Length - 10, Conduit Size NW - 10
Features
- Very high impact resistance, even at very low temperatures
- High thread and system connection strengths
- Easy push-in assembly for maximum installation reliability
- Screwdriver required for dismantling, impeding unauthorized or accidental opening
- Space-saving dismantling
- Excellent conduit pull-out strength
- Fits both conduit profiles - Fine (T) and coarse (G)
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39131717 Electrical conduit elbow |
|---|---|
| Brand Name | PMA |
| Application | For Cable Protection Systems In a Wide Range of Applications |
| Color | Gray |
| Trade Size | NW10 |
| IGCC | 5746 Electrical conduit elbow |
|---|---|
| Type | Fittings for Nylon Flexible Conduits |
| Material | High-Grade Specially Formulated Polyamide/Nylon 6 |
| Size | M16 |
| Connection | 90 Degree |
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | Other |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | M16 x 1.5 |
| Thread length | 10mm |
| Total height | 64.5mm |
| Material sealing | Other |
| Approved in combination with protective conduit CSA | N |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Operating temperature | -50 - +105°C |
| Nominal diameter | 12mm |
|---|---|
| Model | 90°-elbow |
| Construction type | Internal thread |
| Thread type | Metric |
| Thread material | Brass |
| Total length | 44mm |
| Material | Polyamide |
| Colour | Grey |
| Approved in combination with protective conduit UR | N |
| Approved in combination with protective conduit Lloyd's Register | N |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x7.874 |
| Outer Quantity | 250 |
|---|---|
| Weight Uom | 0.04 lbs. Each |
