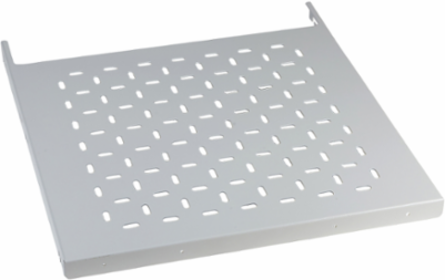

Schneider Electric NSYFXT8050 Fixed Tray 682 mm Wide for W800 D500 mm Enclosures, Steel, Max Load 150 kg
- MPN: NSYFXT8050
- PPN: SCH-NSYFXT8050
CAD
$102.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SM fixed tray for enclosure of W is 800 x D is 500 mm. Tray dimensions are H is 30 x W is 682 x D is 390 mm. Maximum Load 150 kg.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
- Width
- 26.85 in
Height1.18 in
Depth390 mm
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 150 kg evenly distributed
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 fixed tray, fixing elements
- Mounting Support
- direct to the structure, 40 mm cross rails
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- adjustable in depth every 25 mm
- Material
- steel
- Product Or Component Type
- fixed tray
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Height Nominal
- 30 mm
- Width Nominal
- 682 mm
- Accessory / Separate Part Category
- installation accessory
- Package Weight(Lbs)
- 3.980 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Height Useful30 mm
Width Real682 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- fixed tray
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
