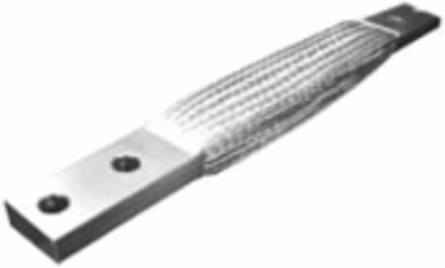

Blackburn STB150A1610 Standard Flexible Braid Connector 610mm Long, Tin-Plated Copper, 2-Hole NEMA
- MPN: STB150A1610
- UPC: 075114308823
- PPN: T-B-STB150A1610
- UNSPSC: 39121465
CAD
$701.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 24 inch (610 mm) long, 1-1/2 inch (38.1 mm) wide, 1/2 inch (12.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 6 Braids in Assembly. 30 AWG Individual Strand.
Specifications
Additional Information
| Application | Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars. |
|---|---|
| Cable Length | 610 mm |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Standard Flexible Braid Connector - 2-Hole |
| Standards | IEEE/ANSI C37.34 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20160622 |
| Product Name | ELECTRICAL FLEX BRAID |
| Special Functions | Tin Plated for High Conductivity and Corrosion Resistance. 2 Hole NEMA Pads |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
