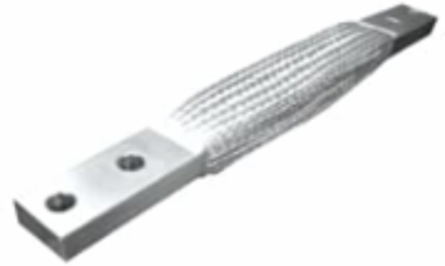

Blackburn EXB070A1355 Extra Flexible Braid Connector, 13.97 Inch Long, 1-1/2 Inch Wide
- MPN: EXB070A1355
- UPC: 075114203623
- PPN: T-B-EXB070A1355
- UNSPSC: 39121465
CAD
$285.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 13.97 inch (355 mm) long, 1-1/2 inch (38.1 mm) wide, 1/4 inch (6.3 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 2 Braids in Assembly. 36 AWG Individual Strand.
Specifications
Additional Information
- Application
- Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars.
- Cable Length
- 355 mm
- Conductor Shape
- Flat
- Material of Conductor
- Tin-Plated Copper
- Product Type
- Extra Flexible Braid Connector - 2-Hole
- Standards
- IEEE/ANSI C37.34
Brand / LabelBoreal
Conductor CategoryFlexible
Effective Date20141029
Product NameELECTRICAL FLEX BRAID
Special FunctionsExtra Flexible Braid, 2-Hole NEMA Pad
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4695 >> Flexible braid
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
