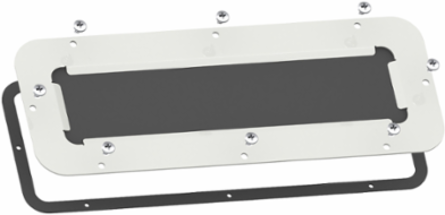

Schneider Electric NSYTLGME Flexicable Gland Plate 428 x 63 mm, Steel, Undrilled, Piercable
Schneider Electric NSYTLGME Flexicable Gland Plate 428 x 63 mm, Steel, Undrilled, Piercable
- MPN: NSYTLGME
- PPN: SCH-NSYTLGME
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$254.05/ EA
Description
Flexicable gland plate for Spacial S3D/CRNG with membrane pearcable. W is 495 x D is 220 mm. Cable management accessory. Mounting on bottom of enclosure. Pierceable by screwdriver. Number of cut-out is Undrilled. Steel plate, HCE (heat curable elastomer) for membrane. Grey RAL 7035. Membrane, 1 plate incl.
Features
- Installation options: Replaces cable gland plate (S3D) or directly on enclosure.
- Cable diameter: Up to 26 mm.
- Ingress protection rating: IP55 according to IEC 60529
- Fixing: By 4, 6, 8, 10 or 12 screws, according to the model Other characteristics:
- Exists in 5 sizes matching 46 sizes (132 models) of PanelSet S3D steel wall-mounted enclosures
- Fire resistant 650 ºC following IEC 60695-2-11
- Tested on short-circuit effect 250 A, 25 kA following IEC 61439-1
Specifications
Physical Attributes
- Color
- plate Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 plate, membrane
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cable Entry
- without
- Device Application
- multi-purpose
- Mounting Location
- enclosure bottom
- Package Weight Lbs
- 1.470 kg
- Product Or Component Type
- flexicable gland plate
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Thickness
- 1.5 mm
- Accessory Separate Part Category2
- cable management accessory
- Stocking Flag
- Y
- Cable Gland Type
- pierceable by screwdriver
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialplate steel, membrane HCE (heat curable elastomer)
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Cut Out Dimensions428 x 63 mm
Energy Efficiency OptimizedFalse
Number Of Cut Outundrilled
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Type Of Gland Platemembrane
Medium DescPanelSeT S3D flexicable gland plate with membrane pearcable 428 x 63 mm
Product Kit IdentifierN
Cable Outer Diameter10-26 mm
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- flexicable gland plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 20.08 in
Depth220 mm
