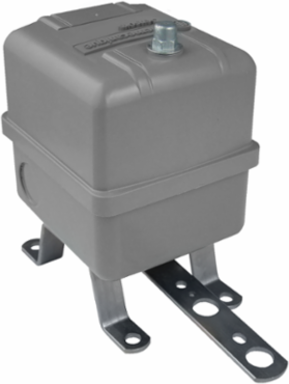

Telemecanique Sensors 9036GG2R Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, 2NO DPST DB contacts
Telemecanique Sensors 9036GG2R Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, 2NO DPST DB contacts
- MPN: 9036GG2R
- UPC: 785901575436
- PPN: TES-9036GG2R
- UNSPSC: 39122219
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$173.10/ EA
Description
This product is part of the NEMA Pressure Switches range, an offer of float switches. This open on liquid rising float switch has 2 normally open, snap action, DPST-DB (double pole single throw, double break) form XX contacts. The open tank float switch supports pedestal mounting method and vertical float rod angle for operating in any position. It is furnished with screw clamp terminals for electrical connection and 3 knockouts for 1/2inch conduit. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. Switch is 6.1inch(W) x 3.43inch(D) x 5.56inch(H) and weighs 2.23lb. The enclosure is made of NORYL thermoplastic resin or equivalent material. Float switch has reverse action. It is a NEMA 1 rated product. This product is certified by UL, CSA, CE. Meets UL 508 standards. Float switch is lever operated and designed for open tank applications. This switch can be pedestal mounted using mounting plate 9049UMS1. Float switch is lever operated and designed for open tank applications. This switch can be pedestal mounted using mounting plate 9049UMS1.
Specifications
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Standards
- CE || UL 508
- Nema Degree Of Protection
- NEMA 1 UL 50
Ambient Air Temperature For Operation-22-220 °F
Ambient Air Temperature For Storage-22-220 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111211EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111210EN
Complementary
- Product Destination
- for open tank or sump
- Terminals Description Iso N°1
- line-load-load-line
- Device Mounting
- pedestal
- Float Rod Angle
- vertical
- Float Movement
- variable adjustable
- Contacts Type And Composition
- 2 NO, snap action, DPST-DB, Form XX
- Net Weight
- 2.23 lb(US)
- Cable Entry Number
- 3 knock-outs for 1/2" conduit UL 508
- Contact Operation
- contacts open on liquid rise
- Controlled Fluid
- fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher
- Mechanical Durability
- 300 cycles
- Enclosure Material
- noryl thermoplastic resin or equivalent
- Motor Power Kw
- 1.5 kW 2 hp)115 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)475 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Terminal Block Type4 terminals
Short-Circuit Protection20 A cartridge fuse gG
Force Down To Trip16 ozf long lever || 24 ozf short lever
Factory Modificationwithout
Maximum Operating Rate60 cyc/mn
Float Positionany
Electrical Durability100 cycles 60 cyc/mn
Electrical Connectionscrew-clamp terminals 10 AWG
[Ui] Rated Insulation Voltage575 V UL 508
Force Up To Trip22 ozf long lever || 30 ozf short lever
Operating Positionvertical position only
Local Signallingwithout
Kit Compositionfloat switch || rod and float are to be choosen in accessories
Specifications
- Range Of Product
- Square D Pumptrol
- Type Of Packing
- individual
- Quantity Per Set
- set of 1
- Device Application
- open tank heavy duty
Product Or Component Typefloat switch
Product Specific Applicationliquid level control
Electrical Circuit Typepower circuit
Device Short Name9036G
