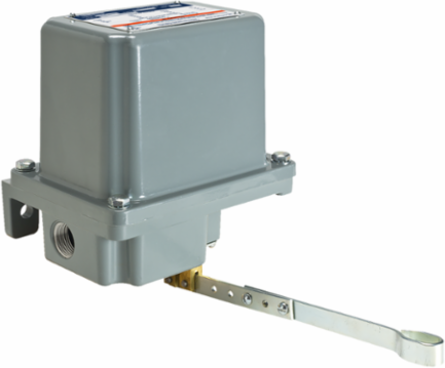

Telemecanique Sensors 9036GW1 Float switch, Square D Pumptrol, open tank, NEMA 4, pedestal mounted, 2 NC DPST DB contacts
Telemecanique Sensors 9036GW1 Float switch, Square D Pumptrol, open tank, NEMA 4, pedestal mounted, 2 NC DPST DB contacts
- MPN: 9036GW1
- UPC: 785901489580
- PPN: TES-9036GW1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1009.78/ EA
Description
This product is part of the Nema Pressure Switches range, an offer of float switches. This float switch has 2 NC, DPST-DB (double pole single throw, double break), form YY, snap action contacts. The open tank float switch supports pedestal mounting method and vertical float rod angle for operating in vertical position only. It is furnished with screw clamp terminals for electrical connection and 2 conduit entries for 3/4-14 NPT. It offers electrical durability of about 100 cycles and mechanical durability of about 300 cycles. It is a NEMA 4 rated product. The enclosure is made of cast aluminum. It weighs 4kg. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses and injection molders. This product is certified by CSA and UL. It meets CE and UL 508 standards. A complete line of switches designed for open or closed tank applications they detect rising or falling liquid levels in various types of containers. The Square D brand water pressure switch has expanded to industry leading Pressure Sensors and Switches.
Specifications
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Standards
- CE || UL 508
- Nema Degree Of Protection
- NEMA 4 UL 50
Ambient Air Temperature For Operation-22-220 °F
Ambient Air Temperature For Storage-22-220 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111211EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111210EN
Complementary
- Product Destination
- for open tank or sump
- Terminals Description Iso N°1
- line-load-load-line
- Device Mounting
- pedestal
- Float Rod Angle
- vertical
- Float Movement
- variable adjustable
- Contacts Type And Composition
- 2 NC, snap action, DPST-DB, Form YY
- Net Weight
- 8.82 lb(US)
- Cable Entry Number
- 2 conduit entries for 3/4"-14 NPT UL 508
- Contact Operation
- contacts close on liquid rise
- Controlled Fluid
- fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher
- Mechanical Durability
- 300 cycles
- Enclosure Material
- cast aluminium
- Motor Power Kw
- 1.5 kW 2 hp)115 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)475 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phases || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phases || 0.75 kW 1 hp)460 V AC, 3 phases || 0.75 kW 1 hp)475 V AC, 3 phases || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Terminal Block Type4 terminals
Short-Circuit Protection20 A cartridge fuse gG
Force Down To Trip27 ozf long lever || 29 ozf medium lever || 31 ozf short lever
Factory Modificationwithout
Maximum Operating Rate60 cyc/mn
Float Positionany
Electrical Durability100 cycles 60 cyc/mn
Electrical Connectionscrew-clamp terminals 10 AWG
[Ui] Rated Insulation Voltage575 V UL 508
Force Up To Trip20 ozf long lever || 22 ozf medium lever || 24 ozf short lever
Operating Positionvertical position only
Local Signallingwithout
Kit Compositionrod and float are to be choosen in accessories || float switch
Specifications
- Range Of Product
- Square D Pumptrol
- Type Of Packing
- individual
- Quantity Per Set
- set of 1
- Device Application
- open tank heavy duty
Product Or Component Typefloat switch
Product Specific Applicationliquid level control
Electrical Circuit Typepower circuit
Device Short Name9036G
