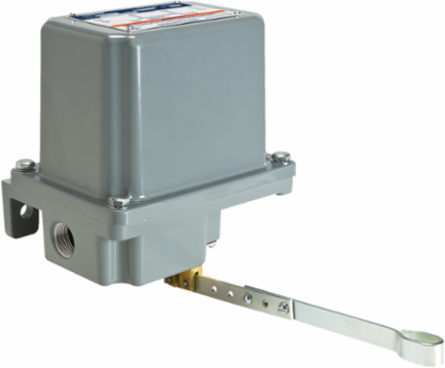

Telemecanique Sensors 9036GW1R Float switch, Square D Pumptrol, open tank, NEMA 4, pedestal mounted, 2 NO DPST DB contacts
- MPN: 9036GW1R
- UPC: 785901489610
- PPN: TES-9036GW1R
CAD
$1028.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Float switch, Square D Pumptrol, open tank, NEMA 4, pedestal mounted, 2 NO DPST DB contacts
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Quantity Per Set
- set of 1
- Product Or Component Type
- float switch
- Device Application
- open tank heavy duty
Product Specific Applicationliquid level control
Electrical Circuit Typepower circuit
Type Of Packingindividual
Device Short Name9036G
Complementary
- Cable Entry Number
- 2 conduit entries for 3/4"-14 NPT UL 508
- Contact Operation
- contacts open on liquid rise
- Terminal Block Type
- 4 terminals
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Controlled Fluid
- fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher
- Force Up To Trip
- 20 ozf long lever || 22 ozf medium lever || 24 ozf short lever
- Force Down To Trip
- 27 ozf long lever || 29 ozf medium lever || 31 ozf short lever
- Factory Modification
- without
- Operating Position
- vertical position only
- Maximum Operating Rate
- 60 cyc/mn
- Contacts Type And Composition
- 2 NO, snap action, DPST-DB, Form XX
- Float Position
- any
- Kit Composition
- float switch || rod and float are to be choosen in accessories
Electrical Connectionscrew-clamp terminals 10 AWG
Product Destinationfor open tank or sump
Terminals Description Iso N°1line-load-load-line
Short-Circuit Protection20 A cartridge fuse gG
Device Mountingpedestal
Mechanical Durability300 cycles
Float Rod Anglevertical
Float Movementvariable adjustable
Enclosure Materialcast aluminium
Local Signallingwithout
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)475 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phases || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phases || 0.75 kW 1 hp)460 V AC, 3 phases || 0.75 kW 1 hp)475 V AC, 3 phases || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Net Weight18.8 lb(US)
Electrical Durability100 cycles 60 cyc/mn
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Ambient Air Temperature For Storage
- -22-220 °F
- Nema Degree Of Protection
- NEMA 4 UL 50
Ambient Air Temperature For Operation-22-220 °F
StandardsCE || UL 508
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
