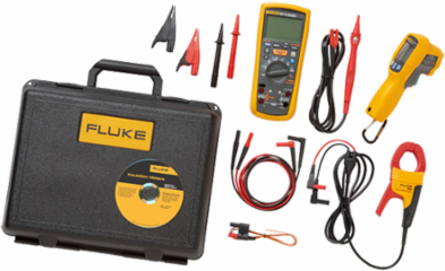

Fluke 1587KIT/62MAX+ FC Fluke 1587 FC Advanced Electrical Troubleshooting Kit

Description

Features

• Temperature range -30°C to 650°C (-22°F to 1202°F)
• Use with your Fluke 1587 FC to measure 1A AC to 400 A AC

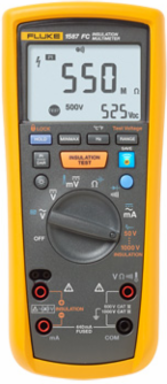

• With the Fluke 1587 FC, perform insulation tests, plus a wide-range of DMM tasks with confidence and ease
• Pl/DAR measurements with TrendIt™ graphs
• 1 mA/Amp output guarantees easy reading CAT III 1000 V / CAT IV 600 V overvoltage rating for added user protection
• Memory storage through Fluke Connect Measurements app
• Accuracy ±1.0°C or ±1.0% of reading, whichever is greater
• Use the Fluke i400 with your Fluke 1587 FC to accurately measure AC current without breaking the circuit
• Specially designed to offer maximum utility in a very compact shape
• The Fluke 62 MAX+ Infrared Thermometer measure -30°C to 650°C (-22°F to 1202°F), is extremely accurate, and has an IP54 rating for water resistance and dust proof
• Temperature Compensation through Fluke Connect Measurements app
• -10°C to 0°C: ±2.0
• -30°C to -10°C: ±3.0
• VFD low-pass filter for accurate motor drive measurements
• Maximum conductor: Ø 32 mm
• 1 year warranty
• Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V
• Response time (95%) Fluke 62 MAX+ < 300 ms (95% of reading)
• Insulation test voltages 500 V, 1000 V
• Spectral response 8 to 14 microns
• Insulation test: 0.01 MΩ to 2.0 GΩ
• Emissivity 0.10 to 1.00
• Optical resolution 12:1 (calculated at 90% energy)
• Insulation test: 0.1 MΩ to 600 MΩ
• Display resolution 0.1°C (0.2°F)
• Auto-discharge of capacitive voltage
• Insulation test smoothing reading
• Repeatability of readings ±0.5% of
• Frequency / Capacitance / Diode test / Temperature
• Reading or < ±0.5°C (1°F), whichever is greater
• Power AA battery
• Min/Max / AC/DC Voltage / DC Millivolts / AC/DC Milliamps
• Resistance (0.1 Ω to 50 MΩ) / Continuity / Auto power off
• Battery life 8 hours with laser and backlight on
• Three-year warranty / Remote probe, test leads, alligator clips, K-type thermocouple, hard case
