Fluke I1000S Fluke i1000s AC Current Probe
- MPN: I1000S
- UPC: 095969090476
- PPN: FLU-I1000S
CAD
$1102.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

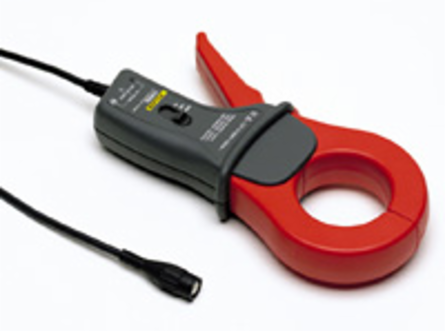

Fluke i1000s AC Current Probe
Features
- Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
- This Current Probe provides the following features:
- A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays
- Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector
- Can be used with multimeters with optional PM9081/001 BNC/Banana adapter
- One year warranty
Specifications
Key Specifications
| Useable frequency | 5 Hz - 100 kHz |
|---|---|
| Lowest measureable current | 0.1 |
| Nominal current range | 10 A 100 A 1000 A |
| Maximum non-descructive current | 2000 A |
| Continuous current range | 0.1 A - 10 A 0.1 A - 100 A 1 A - 1000 A |
|---|---|
| Output level(s) | 100 mv/A 10 mv/A 1 mv/A |
| Basic accuracy | 1% + 1 A (48-65 Hz) (% reading + floorspec) |
Mechanical and General Specifications
| BNC adapter | Yes |
|---|---|
| Warranty | 1 year |
| Maximum conductor diameter | 54 mm |
|---|---|
| Output cable length | 1.6 m |
Safety Specifications
| Safety | CAT III, 600 V CAT IV, 300V |
|---|
| Maximum voltage | 600 V AC |
|---|
