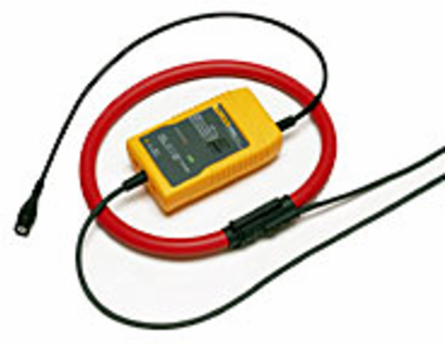

Fluke i3000s Flex 24 Fluke i3000s Flex-24 AC Current Clamp, 610 mm (24 in.)

MPN: i3000s Flex 24
UPC: 095969345057
PPN: FLU-I3000S FLEX-24

$1130.04

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The i3000s Flex is an ac current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.

Features

Three ranges: 30 A, 300 A & 3000 A, 1, 10 or 100 mV/A output
Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
Maximum conductor diameter 178 mm (7 in.)
CAT III 600 V safety rating

Specifications

Electrical Specifications

Temperature coefficient	±0.08% of reading per °C
Linearity	10% to 100% of range: ±0.2% of reading
Current ranges	300 A
Noise	8 mV AC rms (30 A)
Output sensitivity (AC-coupled)	1 mV per A
Current ranges	3000 A
Output sensitivity (AC-coupled)	10 mV
External field	with cable > 200 mm from the head: ±1% of range
Power supply	2 x AA/MN 1500/LR6 Alkaline, 400 hours, low battery indicator or dedicated external power supply
Phase error	±10° (at 20 kHz)

Accuracy	at +25°C: ±1% of range (45 Hz to 65 Hz)
Current ranges	30 A
Noise	2 mV AC rms (300 A, 3000 A)
Frequency range	10 Hz to 50 kHz (-3 dB)
Output sensitivity (AC-coupled)	100 mV
Working voltage	see Safety standards section: 600 V AC rms or DC
Position Sensitivity	with cable > 25 mm from the coupling: ±2% of range
Phase error	< ±1° (45 Hz to 65 Hz)
Load impedance	100 kΩ minimum
Current ranges	AC rms

General Specifications

Safety standards	BS EN 61010-2-032: 2002
Weight	190 g (0.419 lb) (electronics)
Operating temperature range	-20°C to +85°C (-4°F to 185°F) (electronics)
Cable length (head to electronics)	2 m (6.56 ft)
Storage temperature range	-20°C to +85°C (-4°F to 185°F) (electronics)
Head circumference	610 mm (24 in)
Operating humidity	15% to 85% (non-condensing)
Safety standards	BS EN 61010-1: 2001
Maximum conductor size	610 mm or 914 mm, depending on model
Weight	180 g (0.396 lb) (head)

Safety standards	Use of the probe on uninsulated conductors is limited to 600 V AC rms or DC and frequencies below 1 kHz
Operating temperature range	-20°C to +90°C (-4°F to 190°F) (head)
EMC standards	EN 61326: 1998 +A1, A2, & A3
Head bend radius	38.1 mm (1.5 in)
Head cable diameter	14.3 mm (0.56 in)
Safety standards	BS EN 61010-031: 2002
Storage temperature range	-40°C to +105°C (-40°F to 221°F) (head)
Safety standards	600 Vrms, Category III, Pollution Degree 2
Output connection	0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter
