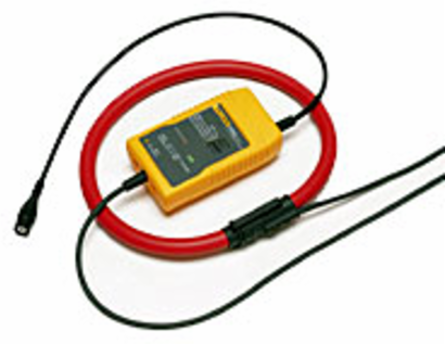

Fluke i3000 Flex 4PK Fluke i3000 Flex AC Current Clamp, 4 Pack

MPN: i3000 Flex 4PK
UPC: 095969362474
PPN: FLU-I3000 FLEX-4PK

$3080.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The i3000s Flex is an ac current clamp can be used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers.

Features

Three ranges
Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
Maximum conductor diameter 178 mm (7 in)
CAT III 600 V safety rating

Specifications

Electrical Specifications

Position sensitivity	±2% of range
Phase error	< ±1° (45 Hz to 65 Hz)
Noise	8 mV AC rms (30 A)
Output sensitivity (AC-coupled)	1 mV per A
Power supply	2 x AA/MN 1500/LR6 Alkaline, 400 hours, low battery indicator or dedicated external power supply
Phase error	±10° (at 20 kHz)
Noise	2 mV AC rms (300 A, 3000 A)
External field	±1% of range
Position sensitivity	with cable > 25 mm from the coupling
Load impedance	100 kΩ minimum
Output sensitivity (AC-coupled)	10 m
Current ranges	30 A
Output sensitivity (AC-coupled)	100 mV

Current ranges	AC rms
Accuracy	at +25°C
Current ranges	3000 A
Current ranges	300 A
Linearity	±0.2% of reading
Temperature coefficient	±0.08% of reading per °C
Linearity	10% to 100% of range
Frequency range	10 Hz to 50 kHz (-3 dB)
Working voltage	see safety standards section
Working voltage	600 V AC rms or DC
Accuracy	±1% of range (45 Hz to 65 Hz)
External field	with cable > 200 mm from the head

General Specifications

Output connection	0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter
Safety standards	600 Vrms, Category III, Pollution Degree 2
Maximum conductor size	610 mm or 914 mm, depending on model
Strong temperature range	-40°C to +105°C (-40°F to 221°F) (head)
Operating temperature range	-20°C to +85°C (-4°F to 185°F) (electronics)
Cable length (head to electronics)	2 m (6.56 ft)
Safety standards	BS EN 61010-031: 2002
Strong temperature range	-20°C to +85°C (-4°F to 185°F) (electronics)
Head bend radius	38.1 mm (1.5in)
Weight	180 g (0.396 lb) (head)

EMC standards	EN 61326: 1998 +A1, A2, and A3
Head cable diameter	14.3 mm (0.56in)
Operating humidity	15% to 85% (non-condensing)
Safety standards	BS EN 61010-2-032: 2002
Weight	190 g (0.419 lb) (electronics)
Safety standards	BS EN 61010-1: 2001
Safety standards	Use of the probe on uninsulated conductors is limited to 600 V AC rms or DC and frequencies below 1 kHz
Operating temperature range	-20°C to +90°C (-4°F to 190°F) (head)
Head circumference	610 mm (24in)
