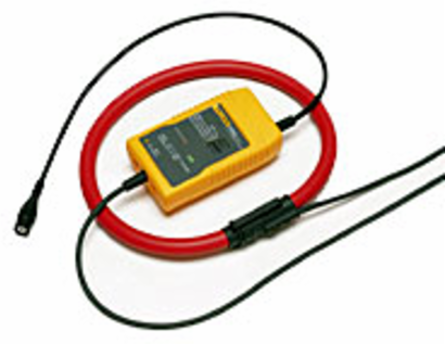

Fluke i3000s Flex 36 Fluke i3000s Flex-36 AC Current Clamp, 915 mm (36 in.)

MPN: i3000s Flex 36
UPC: 095969345071
PPN: FLU-I3000S FLEX-36

$1285.04

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The i3000s Flex is an ac current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.

Features

Three ranges
Also available in pack of 4 for use in Power Quality Analyzers. Click here for more info.
Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
Maximum conductor diameter 178 mm (7 in.)
CAT III 600 V safety rating

Specifications

General Specifications

Storage temperature range	-40°C to +105°C (-40°F to 221°F) (head)
Operating humidity	15% to 85% (non-condensing)
Head cable diameter	14.3 mm (0.56 in)
Head circumference	915 mm (36 in.)
Weight	180 g (0.396 lb) (head)
Cable length (head to electronics)	2 m (6.56 ft)
Operating temperature range	-20°C to +90°C (-4°F to 190°F) (head)
Operating temperature range	-20°C to +85°C (-4°F to 185°F) (electronics)
Head bend radius	38.1 mm (1.5 in)
Safety standards	BS EN 61010-2-032: 2002

Output connection	0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter
Storage temperature range	-20°C to +85°C (-4°F to 185°F) (electronics)
Weight	190 g (0.419 lb) (electronics)
EMC standards	EN 61326: 1998 +A1, A2, and A3
Safety standards	BS EN 61010-031: 2002
Safety standards	BS EN 61010-1: 2001
Maximum conductor size	610 mm or 914 mm, depending on model
Safety standards	600 Vrms, Category III, Pollution Degree 2
Safety standards	Use of the probe on uninsulated conductors is limited to 600 V AC rms or DC and frequencies below 1 kHz

Electrical Specification

Current ranges	3000 A
Current ranges	30 A
Power supply	2 x AA/MN 1500/LR6 Alkaline, 400 hours, low battery indicator or dedicated external power supply
Output sensitivity (AC-coupled)	100 mV
Temperature coefficient	±0.08% of reading per °C
Output sensitivity (AC-coupled)	1mV per A
Frequency range	10 Hz to 50 kHz (-3 dB)
Load impedance	100 kΩ minimum
Phase error	< ±1° (45 Hz to 65 Hz)
Phase error	±10° (at 20 kHz)

Linearity	10% to 100% of range: ±0.2% of reading
Current ranges	AC rms
Accuracy	at +25°C: ±1% of range (45 Hz to 65 Hz)
Output sensitivity (AC-coupled)	10 mV
External field	with cable > 200 mm from the head: ±1% of range
Current ranges	300 A
Working voltage	see Safety standards section: 600 V AC rms or DC
Noise	2 mV AC rms (300 A, 3000 A)
Position sensitivity	with cable > 25 mm from the coupling: ±2% of range
Noise	8 mV AC rms (30 A)
