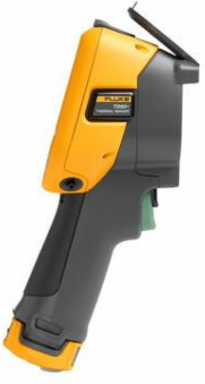

Fluke FLK-TIS60+ 30HZ Fluke TiS60+ Thermal Camera FLK-TIS60+ 30HZ
Fluke FLK-TIS60+ 30HZ Fluke TiS60+ Thermal Camera FLK-TIS60+ 30HZ
- MPN: FLK-TIS60+ 30HZ
- PPN: FLU-FLK-TIS60+ 30HZ
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Specifications
Data storage and image capture
- Extensive memory options
- Internal 4GB memory and 4GB micro SD card
- Image file formats
- Non-radiometric BMP or JPEG or fully-radiometric is2
- Software
- Fluke Connect desktop software - full analysis and reporting software with access to the Fluke Connect system
- Export file formats with Fluke Connect software
- is2, BMP, GIF, JPEG, PNG, TIFF
- IR-PhotoNotes
- Yes - 3 images
Image capture, review, save mechanismOne-handed image capture, review, and save capability
Memory reviewYes
Analyze and store radiometric data on a PCYes
Voice annotation60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset required (sold separately)
Auto capture (temperature and interval)Yes
Wireless connectivity
- Wireless connectivity
- Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available)
- Fluke Connect Assets optional software
- Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location
Fluke™ Connect app compatibleYes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Battery
- Batteries (field-replaceable, rechargeable)
- Two lithium ion smart battery pack with five-segment LED display to show charge level
- Battery charging time
- 2.5 hours to full charge
- AC operation
- AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Battery life4 hours continuous use per battery pack
Battery charging systemTwo-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
Power savingUser selectable
Level and span
- Level and span
- Smooth auto and manual scaling
- Minimum span (in manual mode)
- 2.5 °C (4.5 °F)
Fast auto-rescale in manual modeYes
Minimum span (in auto mode)5 °C (9.0 °F)
Temperature measurement
- Temperature range (not calibrated below -10 °C)
- -20 °C to 400 °C (-4 °F to 752 °F)
- Thermal sensitivity (NETD)
- ≤ 0.045 °C at 30 °C target temp (45 mK)
- On-screen reflected background temperature compensation
- Yes
Accuracy± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correctionYes (both value and table)
On-screen transmission correctionNo
Color palettes
- Standard palettes
- 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra contrast palettes8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Key features
- IFOV (spatial resolution)
- 1.86 mRad, D:S 532:1
- Field of view
- 34.1 °H x 25.6 °H
- Minimum focus distance
- 46 cm (18 in)
- Ergonomic design
- Designed for one-handed use
Infrared resolution320 x 240 (76,800 pixels)
Focus systemFixed
Ruggedized display3.5 inch (8.9 cm landscape) 320 x 240 LCD
IR Fusion® technology
- IR Fusion® technology
- Yes
- Picture-In-Picture (PIP)
- Yes
AutoBlend™ modeYes
Built-in digital camera (visible light)5MP
General specifications
- Laser pointer
- Yes
- Color alarms
- High temperature, low temperature, isotherms (within range)
- Operating temperature
- -10 °C to +50 °C (14 °F to 122 °F)
- Relative humidity
- 10 % to 95 %, non-condensing
- Spot temperature
- Hot and cold spot markers
- User defined measurement boxes
- Expandable-contractible measurement box
- Safety standards
- IEC 61010-1: Overvoltage category II, Pollution Degree 2
- Australian RCM
- RCM IEC 61326-1
- Vibration
- 2G, IEC 68-2-6
- Drop
- Engineered to withstand 2 meter (6.5 feet) drop
- Weight (battery included)
- 0.72 kg (1.6 lb.)
- Warranty
- Two-years (standard)
- Supported languages
- Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Frame rate< 9 Hz or 30 Hz
Infrared spectral band7.5 μm to 14 μm
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Center-point temperature measurementYes
User-definable spot markers3
Hard caseRugged hard carrying case with soft transport bag, including adjustable strap
Electromagnetic combabilityIEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
US FCCEN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
Shock25G, IEC 68-2-29
Sized (H x W x L)26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in)
Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
RoHS compliantYes
