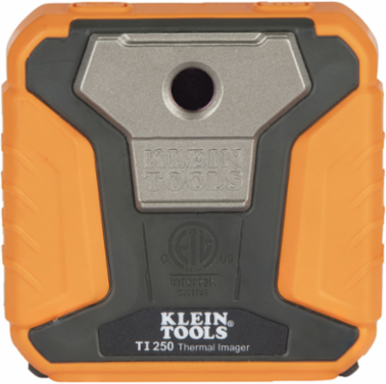

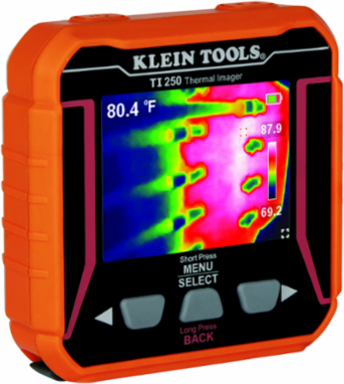

Klein Tools TI250 Rechargeable Thermal Imaging Camera, 10,800 Pixels, -4° to 752°F Temperature Range
- MPN: TI250
- UPC: 092644692932
- PPN: KLT-TI250
- UNSPSC: 41115321
CAD
$570.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

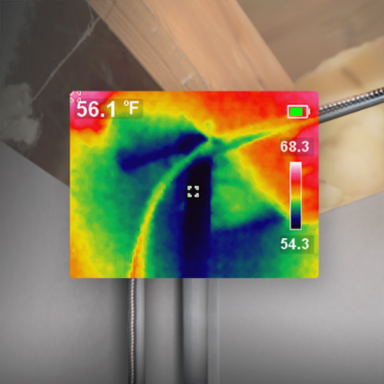

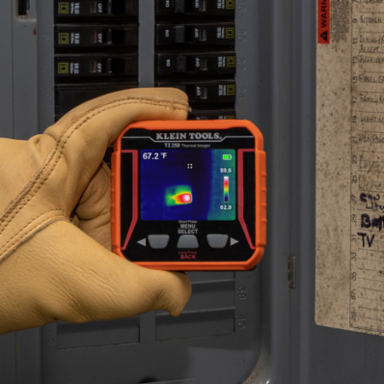

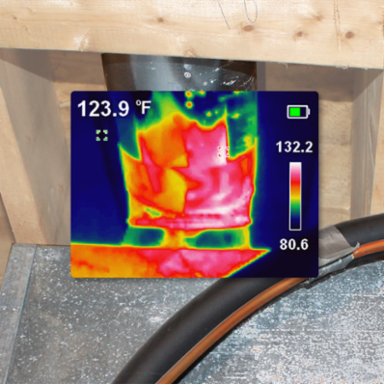

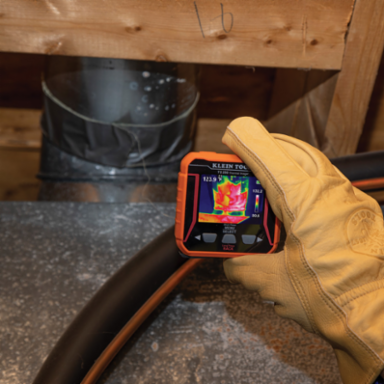

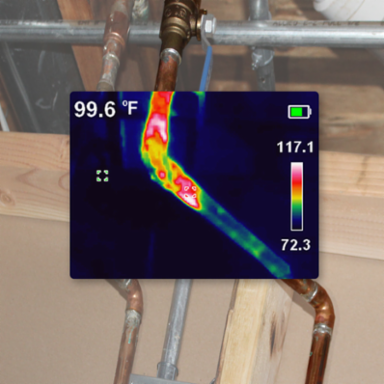

The Klein Tools TI250 is an easy-to-use, USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 19,200 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. Easily capture and transfer images with USB-C port for reporting.
Features
- Thermal Imager has over 19,200 pixels to troubleshoot hot and cold spots
- Adjustable emissivity from 0.01 to 0.99
- Store and share images via USB-C
- User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
- Select color palettes to best capture the event
- Rechargeable lithium-ion battery
- Includes thermal imager, charging cable, carrying case, and instructions
- High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Pallets
Documentation & Downloads
Specifications
Key Specifications
- Accuracy
- At More Than 212°F (100°C) - +/- 2° or 2% (Whichever is Greater); At Less Than 212°F (100°C) - +/- 3° or 3% (Whichever is Greater)
- Display Resolution
- 320 x 240 Pixels
- Type
- Thermal Imager
- Emissivity
- 0.01 to 0.99, Adjustable
- Field of View
- 50° +/- 3°
- Spectral Range
- 8 to 14μm
- Display
- 2.4" (6.1 cm) TFT LCD
- Temperature Range
- -4° to 752°F (-20° to 400°C)
- Batteries
- Lithium-Ion
- Thermal Sensitivity
- <60 mK
- Maximum Frames per Second
- <9 Hz
- Overall Width (cm)
- 2.5
- Overall Length (Inch)
- 3.1
- Overall Height (Inch)
- 3.1
- Weight (g)
- 241
- Width
- 3.1100 in
- Weight
- 0.5370 lbs
MaterialABS/PC, Electronic Components
ApplicationView Hot and Cold Spots For Instant Troubleshooting
StandardsCE and UKCA
MemoryInternal 32GB
Color PalettesIronbow, Rainbow, and Grayscale
Sensor TypeVOx Microbolometer
IncludedRechargeable Thermal Imager, Charging Cable, Carrying Case, and Instructions
Sensor Resolution19,200 Pixels
Photo CaptureYes
Laser SightingNo
Overall Length (cm)7.9
Weight (oz)8.5
Overall Height (cm)7.9
Overall Width (Inch)1
Height1.0300 in
Depth3.1800 in
