Documentation & Downloads

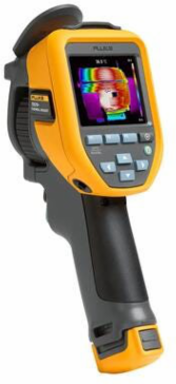

Fluke FLK-TIS75+ 27HZ Fluke TiS75+ Thermal Camera 27HZ
- MPN: FLK-TIS75+ 27HZ
- UPC: 095969946308
- PPN: FLU-FLK-TIS75+ 27HZ
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fluke TiS75+ Thermal Camera 27HZ
Features
- 384 x 288 infrared resolution
- Asset Tagging
- Touchscreen IR Fusion™
- IS3 and AVI video recording
- Measure up to 550 °C
- Dew-point calculation
Documentation & Downloads
Specifications
Key Specifications
- Color alarms
- Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature.
- Operating temperature
- -10 °C to 50 °C (14 °F to 122 °F)
- Relative humidity
- 10 % to 95 % non-condensing
- User-definable spot markers
- Yes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker.
- Hard case
- Rugged hard carrying case with soft transport bag, including adjustable strap
- Electromagnetic combability
- IEC 61326-1: Portable Electromagnetic Environment;IEC 61326-2-2 CISPR 11: Group 1, Class A
- US FCC
- 47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249
- Shock
- 30 g, 11 ms, IEC 60068-2-27
- Sized (H x W x L)
- ∼(26.7 cm x 10.1 cm x 14.5 cm)∼ (10.5 in x 4.0 in x 5.7 in)
- Enclosure rating
- IP54
- Recommended calibration cycle
- Two-years (assumes normal operation and normal aging)
- RoHS compliant
- Yes
Infrared spectral band~8-14μm
Storage temperature-20 °C to 50 °C (-4 °F to 122 °F) without batteries
Spot temperatureCenter spot (unmovable)
User defined measurement boxesYes, 5 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off for each marker.
Safety standardsIEC 61010-1: Pollution Degree 2
Australian RCMRCM IEC 61326-1
Vibration10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
DropEngineered to withstand 2m drop
Weight (battery included)0.885 kg (1.95 lbs)
WarrantyTwo-years (standard)
Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
