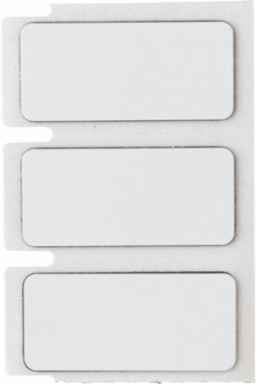

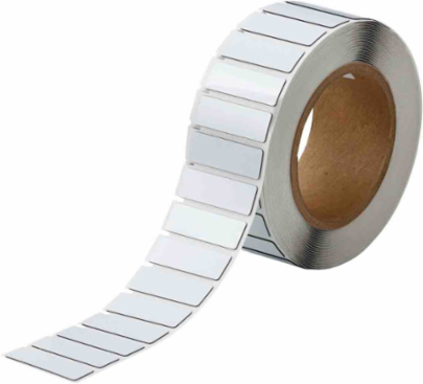

Brady THTEP-172-593-.5 Foam Backed Raised Panel Labels, 0.59" H x 1.77" W, White, Roll of 500 Labels
- MPN: THTEP-172-593-.5
- UPC: 662820644187
- PPN: BRD-THTEP-172-593-.5
- UNSPSC: 55121612
CAD
$386.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

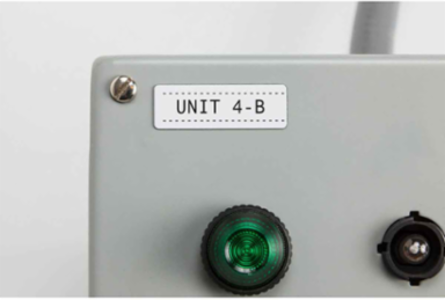

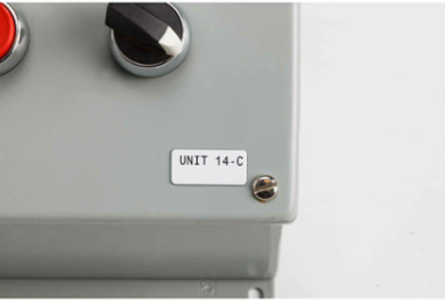

Raised panel Adhesive-Taped Polyester (B-593) labels are designed for patch panel identification, external push-buttons, switches and internal connection points.
Features
- Can be used as rating and serial plates using alphanumerics that require nameplate quality
- Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
- UL approved
- Service temperature of -4 to 212° F (-20 to 100° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; General Identification
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Patent Number(s)
- 8,475,914.00
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Electrical; General Identification; Inspection Repair; Rating & Name Plates
- Quantity per Row
- 1
- Shape
- Rectangle
- Total Quantity
- 500
- Brady Material Number
- B-593
- Label Properties
- Heat Resistant Labels; Permanent Adhesive Labels
- Material Properties
- Raised
- SAP B-Number
- B-593
- Dimensions
- 0.59 in H x 1.77 in W
- Dimensions 2
- 0.59 in H x 1.77 in W
- Height (mm/cm/m)
- 15 mm
- Maximum Service Temperature °C
- 100 °C
- Minimum Service Temperature °C
- -20 °C
- Printable Area Dimensions (Metric)
- 14.99 mm H x 44.96 mm W
- Printable Area Width (mm/cm/m)
- 44.96 mm
- Thickness (in/ft/yd)
- 0.0256 in
- Vertical Repeat
- 0.725 in
- Width (mm/cm/m)
- 44.96 mm
Brand NameBrady®
ColorWhite
Corner TypeRounded Corners
FinishGloss
Label/Media FormatRoll
Patent Valid in (Countries)USA
Print TechnologyThermal Transfer
Quantity per Roll500
Recommended RibbonIP-R6000; R6000
Suggested Ribbon SeriesR4400; R6000 Halogen Free
Adhesive TypePermanent Acrylic - Foam Backed
Indoor or Outdoor UseOutdoor Use
MaterialPolyester
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
Average Outdoor Durability10 Years
Dimensions (Metric)15 mm H
Height (in/ft/yd)0.59 in
Label/Tape Size (in/ft/yd)0.59 in H x 1.77 in W
Maximum Service Temperature °F212 °F
Minimum Service Temperature °F-4 °F
Printable Area Height (mm/cm/m)14.99 mm
Sign Size-General0.59 in x 1.77 in
Thickness (mm/cm/m)0.65 mm
Width (in/ft/yd)1.77 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
