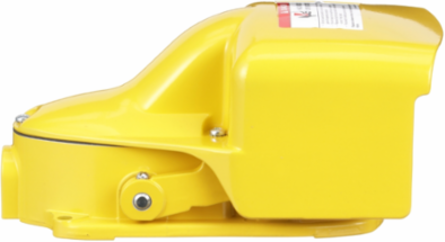

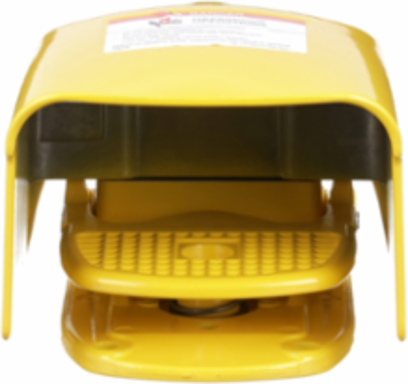

Square D 9002AW15 Foot Switch, Harmony, industrial, pedal and side shields, latch, 0.6A at 600 VAC, DPDT contact, NEMA 2, 4, 13 enclosure
Square D 9002AW15 Foot Switch, Harmony, industrial, pedal and side shields, latch, 0.6A at 600 VAC, DPDT contact, NEMA 2, 4, 13 enclosure
- MPN: 9002AW15
- UPC: 785901817420
- PPN: SCH-9002AW15
- UNSPSC: 39122222
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$752.46/ EA
Description

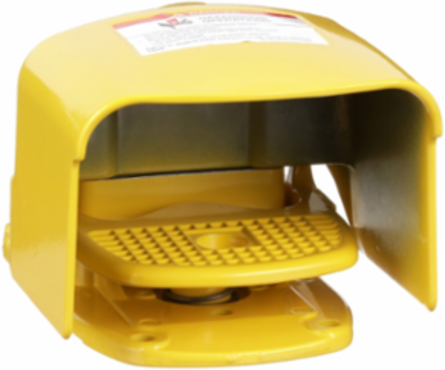

9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. It has a mechanical latch. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL Listed
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- side shield, pedal shield
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Contact Operation
- 1 step
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 9002AW
- Sustainable Packaging
- Yes
- Type Of Operator
- spring return with latch
- Medium Desc
- Foot Switch, Harmony, industrial, pedal and side shields, latch, 0.6A at 600 VAC, DPDT contact, NEMA 2, 4, 13 enclosure
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Cable Entry0.75 inch NPT conduit entrance
Package Weight Lbs2.177 kg
Product Or Component Typefoot switch
ReturnabilityYes
Switch FunctionDPDT
Ue Rated Operational Voltage2600 V AC/DC
Stocking FlagY
Pep CodeENVPEP121009EN
Ue Rated Operational Voltage5600 V AC/DC
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP121009EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP121009EN
General Attributes
- Product Or Component Type
- foot switch
Range Of Product9002AW
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 229 mm
