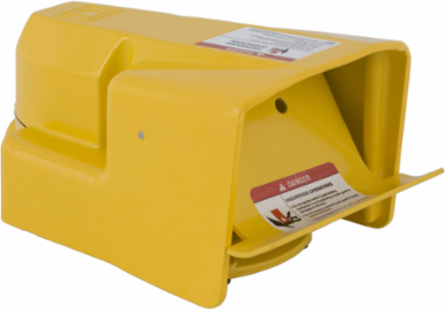

Square D 9002AW124 Harmony Industrial Foot Switch, 6.26 Inch Tall, DPDT, NEMA 2/4/13
Square D 9002AW124 Harmony Industrial Foot Switch, 6.26 Inch Tall, DPDT, NEMA 2/4/13
- MPN: 9002AW124
- UPC: 785901489528
- PPN: SCH-9002AW124
- UNSPSC: 39122222
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$983.29/ EA
Description
9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has an oversized pedal shield, side shields and a safety door. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is 6.26 inches tall, 6.40 inches wide and 8.56 inches deep. Foot switch is UL listed and CSA certified.
Features
- This industrial switch is part of the 9002 Heavy Duty Industrial Foot Switch product range
- It has a two stage operation with spring return with mechanical latch in both stages
- The safety door interlocks with the pedal to prevent operation from shock or vibration
- Fully shielded with oversized pedal shield, side shields, and heavy duty cast metal provide a robust design
- It complies with UL and CSA standards and is NEMA 2, 4, and 13 rated
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL Listed
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- oversized pedal shield, side shield, safety door
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 2 kg CO2 eq., 2.1535470886
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 35 kg CO2 eq., 34.5391161601
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Contact Operation
- 1 step
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 9002AW
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 38 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, DPDT contact, with safety door, 10A at 600V AC
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- XPE metal, single foot switch is an ideal solution for providing start and stop instructions for many types of industrial machines, running in various operating modes like normal (pulsed) start, inching, hold to run. It is designed such that the operating pedal is close to the ground and at a comfortable angle. It is delivered without a protective cover, this makes it suitable for applications where the issuing of the start instruction presents a reduced level of danger.
- Energy Model Manufacturing A1 A3 2
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.6726698626, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.8210574199, 0.8 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-01-12
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Cable Entry0.75 inch NPT conduit entrance
Package Weight Lbs5.144 kg
Product Or Component Typefoot switch
ReturnabilityYes
Switch FunctionDPDT
Type Of Operatorspring return
Ue Rated Operational Voltage2600 V AC/DC
Stocking FlagY
Pep CodeENVPEP2506039EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
Ue Rated Operational Voltage5600 V AC/DC
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 38.1863905311
- Nema Degree Of Protection
- NEMA 4/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2506039EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2506039EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- foot switch
Range Of Product9002AW
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 217 mm
