PMA NKAH-M160-10 Fittings for Nylon Flexible Conduits
- MPN: NKAH-M160-10
- UPC: 786209961631
- PPN: T-B-NKAH-M160-10
CAD
$23.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

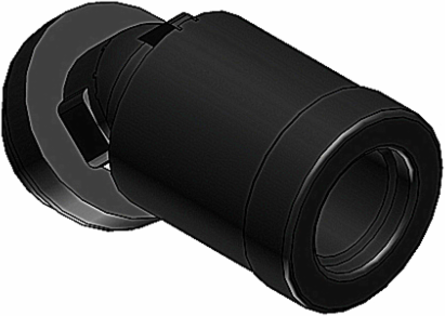

PMAFIX Pro 45 Degree Black Two-Piece Elbow with Metric Threads, Elbow Material - Polyamide 6, Thread Material - Nickel-Plated Brass, Thread Size - M16x1.5, Thread Length - 10, Conduit Size NW - 10
Features
- Very high impact resistance, even at very low temperatures
- High thread and system connection strengths
- Easy push-in assembly for maximum installation reliability
- Screwdriver required for dismantling, impeding unauthorized or accidental opening
- Space-saving dismantling
- Excellent conduit pull-out strength
- Fits both conduit profiles - Fine (T) and coarse (G)
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- Other
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M16 x 1.5
- Thread length
- 10mm
- Total height
- 45mm
- Material sealing
- Other
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit DIN EN 61386-23
- N
- Operating temperature
- -50 - +105°C
Nominal diameter12mm
Model45°-elbow
Construction typeInternal thread
Thread typeMetric
Thread materialBrass
Total length55.5mm
MaterialPolyamide
ColourBlack
Approved in combination with protective conduit URN
Approved in combination with protective conduit Lloyd's RegisterN
North American Specifications (UNSPSC)
- UNSPSC
- 39131717 Electrical conduit elbow
- Brand Name
- PMA
- Application
- For Cable Protection Systems In a Wide Range of Applications
- Color
- Black
- Trade Size
- NW10
IGCC5746 Electrical conduit elbow

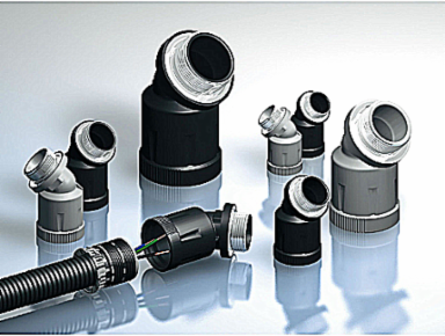

TypeFittings for Nylon Flexible Conduits
MaterialHigh-Grade Specially Formulated Polyamide/Nylon 6
SizeM16
Connection45 Degree
Packaging
- Inner Quantity
- 50
- Outer Dimensions (inches)
- 15.748x11.811x7.874
Outer Quantity250
Weight Uom0.11 lbs. Each
