Schneider Electric LUFW10 TeSys U Function Module with 1NO Contact for Thermal Overload Alarm
- MPN: LUFW10
- PPN: SCH-LUFW10
CAD
$296.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

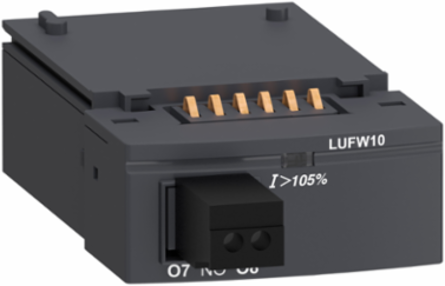

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload alarm. It provides 1NO instantaneous contact rated 2A 230V AC / 24V DC, a LED status on front panel. The alarm is activated when the thermal overload state exceeds 88% of thermal tripping state, with an hysteresis of 5% between activation and deactivation. It is powered by the control unit. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Communications & Management Attributes
- Communication Of Faults
- LED front panel
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Connections - Terminals
- screw clamp terminals 1 cable(s) 0.2-1.5 mm² rigid without cable end, screw clamp terminals 1 cable(s) 0.25-1.5 mm² flexible with cable end, screw clamp terminals 2 cable(s) 0.2-1 mm² flexible without cable endscrew clamp terminals 2 cable(s) 0.2-1 mm² rigid without cable end, screw clamp terminals 2 cable(s) 0.25-1 mm² flexible with cable end, screw clamp terminals 2 cable(s) 0.5-1 mm² flexible with cable end, screw clamp terminals 1 cable(s) 0.2-1.5 mm² flexible without cable end
- Local Publishable Date
- 2025-05-18
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2025
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Associated Cable Type
- AWG24...AWG16
- Connection Pitch
- 5.08 mm
- Energy Efficiency Optimized
- False
- Mounting Location
- front side
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Returnability
- No
- Tightening Torque
- 0.5-0.6 N.m 3.5 mm flat
- [Ith] Conventional Free Air Thermal Current
- 2 A 70 °C
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 54.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeLUF
Device Short NameLUF
Function Availablethermal overload alarm
Mounting Modeplug-in
Product Or Component Typefunction module
Range Of ProductTeSys Ultra
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Short-circuit Protection2 A fuse gG IEC 60947-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Product Compatibility
- LUCC, LUCB, LUCD
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- function module
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC002027
ETIM 9EC002027
Output Attributes
- Discrete Output Function
- 1 NO AC-15) 230 V 400 VA 100000 cycles, 1 NO DC-13) 24 V 50 W 100000 cycles
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
