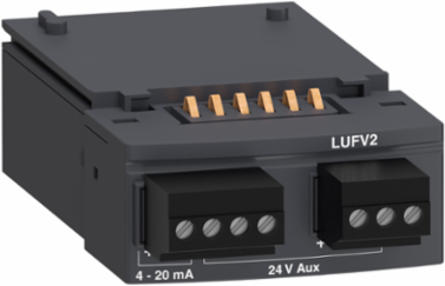

Schneider Electric LUFV2 TeSys Ultra Function Module 24VDC, Motor Load Indication 4-20 mA
- MPN: LUFV2
- PPN: SCH-LUFV2
CAD
$358.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Mexico, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Load Impedance Ohmic | <= 500 Ohm, 100 Ohm typical, <= 500 Ohm |
| Connections - Terminals | screw clamp terminals 1 cable(s) 0.25-1 mm² flexible with cable endscrew clamp terminals 2 cable(s) 0.14-0.75 mm² flexible without cable end, screw clamp terminals 2 cable(s) 0.25-0.34 mm² flexible with cable end, screw clamp terminals 1 cable(s) 0.14-1 mm² flexible without cable end, screw clamp terminals 1 cable(s) 0.14-1 mm² rigid without cable endscrew clamp terminals 1 cable(s) 0.25-0.5 mm² flexible with cable end, screw clamp terminals 2 cable(s) 0.14-0.5 mm² rigid without cable end, screw clamp terminals 2 cable(s) 0.5-0.5 mm² flexible with cable end |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2025 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Analogue Output Current2 | 4-20 mA |
| Compatibility Code | LUF |
| Device Short Name | LUF |
| Function Available | indication of motor load |
| Mounting Mode | plug-in |
| Product Or Component Type | function module |
| Range Of Product | TeSys Ultra |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 50.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Measurement Accuracy | +/- 10 % with multifunction control unit 1 % of Ir, +/- 10 % with multifunction control unit 1 % of Ir, +/- 10 % with multifunction control unit 1 % of Ir, +/- 6 % with advanced control unit, +/- 6 % with advanced control unit+/- 10 % with multifunction control unit 1 % of Ir, +/- 10 % with multifunction control unit 1 % of Ir, +/- 10 % with multifunction control unit 1 % of Ir, +/- 6 % with advanced control unit, +/- 6 % with advanced control unit |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Associated Cable Type | AWG 26...AWG 16 |
| Connection Pitch | 3.81 mm |
| Energy Efficiency Optimized | False |
| Mounting Location | front side |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Tightening Torque | 0.2-0.25 N.m 2.5 mm flat |
| [Us] Rated Supply Voltage | 24 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531809005 |
Environment Attributes Main
| Product Compatibility | LUCC, LUCM, LUCB, LUCD |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | Yes |
General Attributes
| Product Or Component Type | function module |
|---|
| Range Of Product | TeSys Ultra |
|---|
ETIM
| ETIM 8 | EC002027 |
|---|
| ETIM 9 | EC002027 |
|---|
Output Attributes
| Type Of Output Signal | value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, value of I average/Ir ratio within the range of 0 to 3 for LUCC |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
