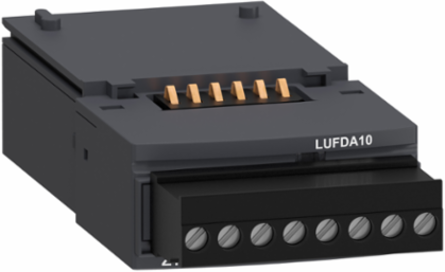

Schneider Electric LUFDA10 TeSys Ultra Function Module 1NO 24-240V AC/DC Thermal Overload Signal
- MPN: LUFDA10
- PPN: SCH-LUFDA10
CAD
$296.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and the reset done by the power base control pad or done remotely. It provides 1NO instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, Philippines
Communications & Management Attributes
- Communication Of Faults
- LED front panel
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- 7 mA 24 V DC, 1.1 mA 240 V AC
- Connections - Terminals
- screw clamp terminals 2 cable(s) 0.2-1 mm² flexible without cable end, screw clamp terminals 2 cable(s) 0.2-1 mm² rigid without cable end, screw clamp terminals 2 cable(s) 0.25-1 mm² flexible with cable end, screw clamp terminals 2 cable(s) 0.5-1 mm² flexible with cable end
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2025
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LUF
- Device Short Name
- LUF
- Function Available
- thermal overload signalling and automatic or remote reset
- Mounting Mode
- plug-in
- Product Or Component Type
- function module
- Range Of Product
- TeSys Ultra
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Short-circuit Protection
- 2 A fuse gG IEC 60947-5-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Us] Rated Supply Voltage24...240 V DC, 24...240 V AC
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Pitch5.08 mm
Energy Efficiency OptimizedFalse
Mounting Locationfront side
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Tightening Torque0.5-0.6 N.m 3.5 mm flat
[Ith] Conventional Free Air Thermal Current2 A 70 °C
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)71.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- function module
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC002027
ETIM 9EC002027
Output Attributes
- Discrete Output Function
- 1 NO AC-15) 230 V 400 VA 100000 cycles, 1 NO DC-13) 24 V 50 W 100000 cycles
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Type
- remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF
