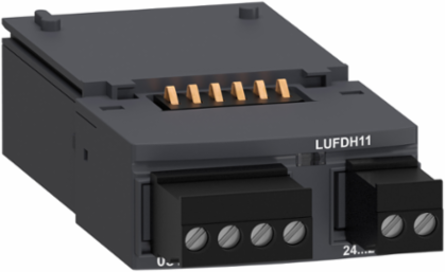

Schneider Electric LUFDH11 TeSys Ultra Function Module 1NO+1NC 24-240V AC/DC Front Side
- MPN: LUFDH11
- PPN: SCH-LUFDH11
CAD
$296.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The TeSys Ultra Function Module by Schneider Electric is engineered for versatility and reliability in automation and control applications. Featuring one normally open and one normally closed contact, it operates seamlessly across a wide voltage range of 24 to 240V AC/DC, making it suitable for various industrial environments. This module is designed with user-friendly connectivity for front-side access, facilitating easier installation and maintenance. Focused on optimizing motor control systems, it enhances efficiency and safety in your automation processes.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 24...240 V AC/DC
- Short-Circuit Protection
- 2 A fuse gG IEC 60947-5-1
- Current Consumption
- 7 mA 24 V DC, 1.1 mA 240 V AC
- Tightening Torque
- 0.5-0.6 N.m, 3.5 mm flat
- Connections - Terminals
- Screw clamp terminals 0.2-1 mmb2 rigid, 0.25-1 mmb2 flexible with cable end, 0.5-1 mmb2 flexible with cable end
- Mounting Mode
- Plug-in
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Function Available
- thermal overload signalling and manual reset
- Range
- TeSys
- Mercury Free
- Yes
- Reach Regulation
- Contains SVHC above threshold
- Eu Rohs Directive
- Compliant with Exemptions
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP111201EN
- Communication Of Faults
- LED front panel
- Country of Origin
- France
Conventional Free Air Thermal Current2 A 70 0C
Discrete Output Function1 NO + 1 NC AC-15 230 V 400 VA 100000 cycles, 1 NO + 1 NC DC-13 24 V 50 W 100000 cycles
Input Typeremote reset 0.2-1.5 mmb2 <500 m 50 Ohm 52.8 mH 0.093 nF
Connection Pitch5.08 mm
Net Weight0.06 kg
Mounting LocationFront side
Product Or Component Typefunction module
Product CompatibilityLUCC, LUCB, LUCD
Device Short NameLUF
ComplianceEU RoHS Compliant with Exemptions, China RoHS (with exemptions)
China Rohs RegulationProduct out of China RoHS scope, substance declaration provided
Rohs Exemption InformationYes
Circularity ProfileENVEOLI111214EN_V1
WeeeMust be disposed per EU waste regulations
Warranty18 months
