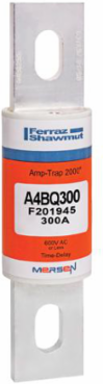

Mersen A4BQ300 Fuse Amp-Trap 2000® 600V 300A Time-Delay Class L, 2 Inch Diameter, 2.6 lb
Mersen A4BQ300 Fuse Amp-Trap 2000® 600V 300A Time-Delay Class L, 2 Inch Diameter, 2.6 lb
- MPN: A4BQ300
- UPC: 782001931117
- PPN: FER-A4BQ300
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1231.55/ EA
Description
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class L
- Mounting
- Bolted
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 2.44 lb
Rated voltage DC UL500 V
Ampere Rating300 A
AC or DCAC/DC
Speed/CharacteristicTime Delay
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
Length8.63 in
